[SDL] SDL Box2D Add Collision Shape - Box2D 충돌 감지

C, C++ 2024. 1. 30. 20:03 |
반응형

한 오브젝트에 여러개의 Shape을 추가해 충돌을 감지해 보자.

XXXShape이나 FixtureDef를 CreateFixture()에 전달하면 충돌 감지기가 추가된다.



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
#include <iostream>
#include "SDL.h"
#include "box2d/box2d.h"

class DebugDrawer : public b2Draw
{
public:
    DebugDrawer(SDL_Renderer* renderer) {
        this->renderer = renderer;
    }
private:
    SDL_Renderer* renderer;
    void DrawSolidPolygon(const b2Vec2* vertices, int32 vertexCount, const b2Color& color) {}
    void DrawPoint(const b2Vec2& p, float size, const b2Color& color) {}
    void DrawPolygon(const b2Vec2* vertices, int32 vertexCount, const b2Color& color) {
        SDL_SetRenderDrawColor(renderer, 255, 0, 0, SDL_ALPHA_OPAQUE);
        SDL_FRect* rect = new SDL_FRect{ vertices[0].x, vertices[0].y, vertices[1].x
            - vertices[0].x, vertices[3].y - vertices[0].y };
        SDL_RenderDrawRectF(renderer, rect);
    }
    void DrawCircle(const b2Vec2& center, float radius, const b2Color& color) {}
    void DrawSolidCircle(const b2Vec2& center, float radius, const b2Vec2& axis, const b2Color& color) {}
    void DrawSegment(const b2Vec2& p1, const b2Vec2& p2, const b2Color& color) {}
    void DrawTransform(const b2Transform& xf) {}
};

int main(int argc, char* argv[]) {
    SDL_Init(SDL_INIT_VIDEO);
    SDL_Window* window = SDL_CreateWindow("SDL Test", SDL_WINDOWPOS_UNDEFINED,
        SDL_WINDOWPOS_UNDEFINED, 640, 480, SDL_WINDOW_RESIZABLE);
    SDL_Renderer* renderer = SDL_CreateRenderer(window, -1, 0);
    SDL_Surface* playerSurface = SDL_LoadBMP("player.bmp");
    SDL_Texture* texture = SDL_CreateTextureFromSurface(renderer, playerSurface);

    // World 정의
    b2Vec2 gravity(0.0f, 9.8f);
    b2World world(gravity);

    // DebugDraw 정의
    DebugDrawer* debugDrawer = new DebugDrawer(renderer);
    debugDrawer->SetFlags(b2Draw::e_shapeBit | b2Draw::e_jointBit |
        b2Draw::e_centerOfMassBit | b2Draw::e_aabbBit | b2Draw::e_pairBit);
    world.SetDebugDraw(debugDrawer);

    // Player 정의
    b2BodyDef playerBodyDef;
    playerBodyDef.type = b2_dynamicBody;
    playerBodyDef.position.Set(0.0f, 0.0f);
    playerBodyDef.linearVelocity = b2Vec2(50.0f, 0.0f);
    playerBodyDef.angularVelocity = 0.2f;
    b2Body* playerBody = world.CreateBody(&playerBodyDef);
    b2PolygonShape dynamicBox;
    dynamicBox.SetAsBox((float)playerSurface->w / 2, (float)playerSurface->h / 2);
    b2FixtureDef fixtureDef;
    fixtureDef.shape = &dynamicBox;
    fixtureDef.density = 1.0f;
    fixtureDef.friction = 0.3f;
    fixtureDef.restitution = 0.5f;
    playerBody->CreateFixture(&fixtureDef);
    // Player에 shape 추가
    b2PolygonShape another;
    another.SetAsBox(10, 40, b2Vec2(0, -60), 0.0f);
    playerBody->CreateFixture(&another, 1.0f);
    // Creates a fixture from a shape and attach it to this body. This is a convenience function.
    // Use b2FixtureDef if you need to set parameters like friction, restitution, user data, or
    // filtering. If the density is non-zero, this function automatically updates the mass of the body.
    /*
    b2Fixture* temp = NULL;
    for (b2Fixture* fix = playerBody->GetFixtureList(); fix; fix=fix->GetNext()) {
        std::cout << fix->GetFriction() << std::endl;
        if (fix->GetFriction() == 0.2f)
            temp = fix;
        // 여기서 바로 playerBody->DestroyFixture()를 호출하면 fix가 파괴되어 GetNext()를 호출 할 수
        // 없게 된다. 임시 변수에 저장하고 for문을 벗어나면 파괴하자.
    }
    if (temp != NULL)
        playerBody->DestroyFixture(temp);
    // 이 예제에서는 Friction값을 비교해서 삭제할 Fixture를 선택했지만 필요하다면
    // UserData를 설정해서 비교하자.
    */

    // Ground 정의
    b2BodyDef groundBodyDef;
    groundBodyDef.position.Set(0.0f, 400.0f);
    b2Body* groundBody = world.CreateBody(&groundBodyDef);
    b2PolygonShape groundBox;
    groundBox.SetAsBox(500.0f, 0.0f);
    SDL_Rect groundRect = { 0, 400, 500, 10 };
    groundBody->CreateFixture(&groundBox, 0.0f);

    // Wall 정의
    b2BodyDef wallBodyDef;
    wallBodyDef.position.Set(300.0f, 0.0f);
    b2Body* wallBody = world.CreateBody(&wallBodyDef);
    b2PolygonShape wallBox;
    wallBox.SetAsBox(0.0f, 480.0f);
    SDL_Rect wallRect = { 300, 0, 10, 480 };
    wallBody->CreateFixture(&wallBox, 0.0f);

    float timeStep = 1.0f / 500.0f;
    int velocityIterations = 6;
    int positionIterations = 2;

    SDL_Event event;
    bool quit = false;

    while (!quit) {
        while (SDL_PollEvent(&event)) {
            switch (event.type) {
            case SDL_QUIT:
                quit = true;
                break;
            case SDL_KEYDOWN:
                printf("Key pressed: %s\n", SDL_GetKeyName(event.key.keysym.sym));
                if (event.key.keysym.sym == SDLK_SPACE) {
                    playerBody->SetTransform(b2Vec2(0.0f, 0.0f), 0.0f);
                    playerBody->SetLinearVelocity(b2Vec2(50.0f, 0.0f));
                    playerBody->SetAngularVelocity(0.2f);
                }
                if (event.key.keysym.sym == SDLK_ESCAPE)
                    quit = true;
                break;

            default:
                break;
            }
        }

        world.Step(timeStep, velocityIterations, positionIterations);

        SDL_SetRenderDrawColor(renderer, 255, 255, 255, SDL_ALPHA_OPAQUE);
        SDL_RenderClear(renderer);

        // Ground 그리기
        SDL_SetRenderDrawColor(renderer, 220, 140, 20, SDL_ALPHA_OPAQUE);
        SDL_RenderFillRect(renderer, &groundRect);

        // Wall 그리기
        SDL_SetRenderDrawColor(renderer, 64, 64, 64, SDL_ALPHA_OPAQUE);
        SDL_RenderFillRect(renderer, &wallRect);

        // Player 그리기
        b2Vec2 playerPosition = playerBody->GetPosition();
        SDL_Rect destRect = { (int)playerPosition.x - playerSurface->w / 2,
            (int)playerPosition.y - playerSurface->h / 2, playerSurface->w, playerSurface->h };
        SDL_RendererFlip flip = SDL_FLIP_NONE;
        float angle = playerBody->GetAngle() * (180 / (float)M_PI);
        SDL_RenderCopyEx(renderer, texture, NULL, &destRect, angle, NULL, flip);

        // 가장 마지막에 DebugDraw 그리기
        world.DebugDraw();

        SDL_RenderPresent(renderer);
    }

    delete debugDrawer;

    SDL_DestroyTexture(texture);
    SDL_FreeSurface(playerSurface);
    SDL_DestroyRenderer(renderer);
    SDL_DestroyWindow(window);
    SDL_Quit();

    return 0;
}




코드를 입력하고 빌드한다.

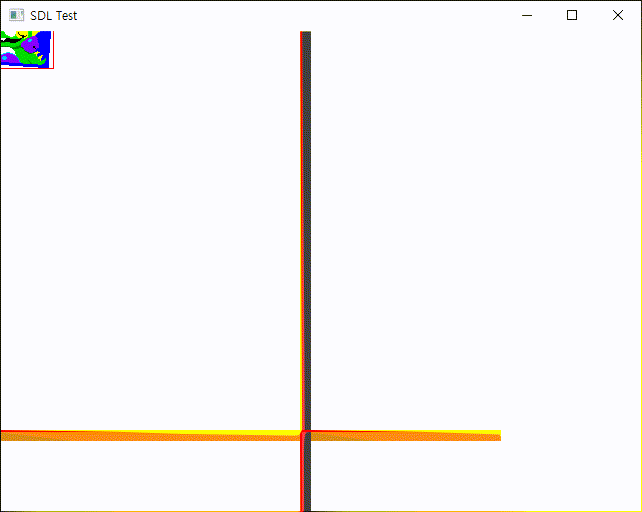

실행하면 공룡의 뿔같은 충돌 감지기가 추가된 모습이 보인다.



뿔 처럼 생긴 충돌 감지기는 크기, 위치, Density만 설정되어있다.



반응형
저작자표시 비영리 변경금지

'C, C++' 카테고리의 다른 글

[SDL] SDL 2D Camera - 2D 카메라  (0) 2024.02.01
[SDL] SDL Box2D Collision Contact Point & Normal Vector - Box2D 충돌 지점과 법선 벡터  (0) 2024.01.31
[SDL] SDL Box2D DebugDraw - 디버그 드로우  (1) 2024.01.30
[SDL] SDL Box2D Collision - Box2D 충돌  (1) 2024.01.30
[SDL] SDL Box2D - 물리 라이브러리  (0) 2024.01.27
Posted by J-sean
:

Python Multi Thread Class 파이썬 멀티 스레드 클래스

Python 2023. 9. 10. 23:23 |
반응형

스레드 클래스를 상속받는 클래스를 정의하고 사용해 보자.



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
import time
import threading

class Worker(threading.Thread):
    def __init__(self, name, count, delay):
        super().__init__()
        self.name = name
        self.count = count
        self.delay = delay

    # 스레드 클래스를 상속하는 클래스는 run()를 재정의 해야 한다.
    # 객체를 만들고 start()를 실행하면 run()가 실행된다.
    def run(self):
        print(f"{self.name} job started.")
        for i in range(self.count):
            print(f"{self.name} job: {i}.")
            time.sleep(self.delay)
        print(f"{self.name} job finished.")


print("Main started.")

thread_1 = Worker("First", 5, 0.5)
#thread_1.daemon = True
# 데몬 스레드로 설정되면 메인 스레드 종료시 서브 스레드도 종료된다.
thread_1.start()
#thread_1.join()
# join()을 실행한 스레드가 종료할 때까지 나머지 스레드는 대기한다.

thread_2 = Worker("Second", 5, 0.5)
#thread_2.daemon = True
thread_2.start()
#thread_2.join()

print(f"■ Number of threads: {threading.active_count()}")

time.sleep(1)

print("Main finished.")








1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
import time
import threading

class Worker(threading.Thread):
    def __init__(self, name, count, delay):
        super().__init__()
        self.name = name
        self.count = count
        self.delay = delay

    def run(self):
        print(f"{self.name} job started.")
        for i in range(self.count):
            print(f"{self.name} job: {i}.")
            time.sleep(self.delay)
        print(f"{self.name} job finished.")

thread_1 = Worker("First", 5, 0.5)
thread_2 = Worker("Second", 5, 0.5)
thread_3 = Worker("Third", 5, 0.5)
threads = [thread_1, thread_2, thread_3]

print(f"■ Number of threads: {threading.active_count()}")
# 활성화된 스레드는 메인스레드 뿐이므로 1이 표시된다.

for thread in threads:
    thread.start()
    thread.join()








※ thread - Thread-based parallelism



반응형
저작자표시 비영리 변경금지

'Python' 카테고리의 다른 글

Python Coroutines 파이썬 코루틴  (0) 2023.09.11
Python Coroutines and Tasks 파이썬 코루틴과 태스크  (0) 2023.09.11
Python Multi Thread 파이썬 멀티 스레드  (0) 2023.09.10
[Pygame] Cursor 파이게임 커서  (0) 2023.09.10
[Pygame] Joystick 파이게임 조이스틱  (0) 2023.09.06
Posted by J-sean
:

Python Multi Thread 파이썬 멀티 스레드

Python 2023. 9. 10. 20:26 |
반응형

멀티 스레드를 사용해 보자.



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
import time
import threading

def Job(name, count, delay):
    print(f"{name} job started.")
    for i in range(count):
        print(f"{name} job: {i}.")
        time.sleep(delay)
    print(f"{name} job finished.")

print("Main started.")

thread_1 = threading.Thread(target=Job, args=("First", 5, 0.5))
thread_1.start()

thread_2 = threading.Thread(target=Job, args=("Second", 5, 0.5))
thread_2.start()

print(f"■ Number of threads: {threading.active_count()}")

time.sleep(1)

print("Main finished.")






■ threading.Thread(group=None, target=None, name=None, args=(), kwargs={}, *, daemon=None)

- target is the callable object to be invoked by the run() method. Defaults to None, meaning nothing is called.
- args is a list or tuple of arguments for the target invocation. Defaults to ().





1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
import time
import threading

def Job(name, count, delay):
    print(f"{name} job started.")
    for i in range(count):
        print(f"{name} job: {i}.")
        time.sleep(delay)
    print(f"{name} job finished.")

print("Main started.")

thread_1 = threading.Thread(target=Job, args=("First", 5, 0.5))
thread_1.daemon = True
thread_1.start()

thread_2 = threading.Thread(target=Job, args=("Second", 5, 0.5))
thread_2.daemon = True
thread_2.start()

print(f"■ Number of threads: {threading.active_count()}")

time.sleep(1)

print("Main finished.")








1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
import time
import threading

def Job(name, count, delay):
    print(f"{name} job started.")
    for i in range(count):
        print(f"{name} job: {i}.")
        time.sleep(delay)
    print(f"{name} job finished.")

print("Main started.")

thread_1 = threading.Thread(target=Job, args=("First", 5, 0.5))
thread_1.start()
thread_1.join()

thread_2 = threading.Thread(target=Job, args=("Second", 5, 0.5))
thread_2.start()
thread_2.join()

print(f"■ Number of threads: {threading.active_count()}")

time.sleep(1)

print("Main finished.")






■ join(timeout=None)

- Wait until the thread terminates. This blocks the calling thread until the thread whose join() method is called terminates – either normally or through an unhandled exception – or until the optional timeout occurs.
- When the timeout argument is present and not None, it should be a floating point number specifying a timeout for the operation in seconds (or fractions thereof). As join() always returns None, you must call is_alive() after join() to decide whether a timeout happened – if the thread is still alive, the join() call timed out.
- When the timeout argument is not present or None, the operation will block until the thread terminates.
- A thread can be joined many times.





반응형
저작자표시 비영리 변경금지

'Python' 카테고리의 다른 글

Python Coroutines and Tasks 파이썬 코루틴과 태스크  (0) 2023.09.11
Python Multi Thread Class 파이썬 멀티 스레드 클래스  (0) 2023.09.10
[Pygame] Cursor 파이게임 커서  (0) 2023.09.10
[Pygame] Joystick 파이게임 조이스틱  (0) 2023.09.06
[Pygame] Momentum Based Movement 관성이 적용된 자연스러운 움직임  (0) 2023.09.05
Posted by J-sean
:

Handling multi touch event in Android 안드로이드 멀티 터치 이벤트

Android 2019. 12. 8. 17:17 |
반응형

It describes how to use the touch API in Android applications.


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
public class MainActivity extends AppCompatActivity {

    int[] id = new int[3];
    int[] x = new int[3];
    int[] y = new int[3];
    String result;

    TextView textView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        textView = findViewById(R.id.textView);
    }

    @Override
    public boolean onTouchEvent(MotionEvent event) {

        // 3개의 포인터(터치)까지 허용
        int pointer_count = event.getPointerCount();
        if (pointer_count > 3)
            pointer_count = 3;

        // ACTION_POINTER_DOWN 과 ACTION_POINTER_UP 이벤트는 액션 값에 추가적인 정보가 인코딩 되어 있다.
        // 액션 값과 MotionEvent.ACTION_POINTER_INDEX_MASK를 & 연산을 하게 되면 눌리거나 떼어진 포인터의 인덱스 값을 알 수 있다.
        // public static final int ACTION_POINTER_INDEX_MASK
        // Bits in the action code that represent a pointer index, used with ACTION_POINTER_DOWN and ACTION_POINTER_UP.
        switch (event.getAction() & MotionEvent.ACTION_MASK)
        {
            case MotionEvent.ACTION_DOWN:
                result = "Single Touch Down:";
                id[0] = event.getPointerId(0);
                x[0] = (int)event.getX(0);
                y[0] = (int)event.getY(0);
                result += "\n(" + x[0] + ", " + y[0] + ")";
                break;

            case MotionEvent.ACTION_POINTER_DOWN:
                result = "Multi Touch Down:";
                for (int i = 0; i < pointer_count; i++)
                {
                    id[i] = event.getPointerId(i);
                    x[i] = (int)event.getX(i);
                    y[i] = (int)event.getY(i);
                    result += "\n(" + id[i] + ": " + x[i] + ", " + y[i] + ")";
                }

                // Move는 싱글, 멀티 모두 ACTION_MOVE 하나로 처리
            case MotionEvent.ACTION_MOVE:
                result = "Touch Move:";
                for (int i = 0; i < pointer_count; i++)
                {
                    id[i] = event.getPointerId(i);
                    x[i] = (int)event.getX(i);
                    y[i] = (int)event.getY(i);
                    result += "\n(" + id[i] + ": " + x[i] + ", " + y[i] + ")";
                }
                break;

            case MotionEvent.ACTION_UP:
                result = "Single Touch Up:";
                id[0] = event.getPointerId(0);
                x[0] = (int)event.getX(0);
                y[0] = (int)event.getY(0);
                result += "\n(" + x[0] + ", " + y[0] + ")";
                break;

            case MotionEvent.ACTION_POINTER_UP:
                result = "Multi Touch Up:";
                for (int i = 0; i < pointer_count; i++)
                {
                    id[i] = event.getPointerId(i);
                    x[i] = (int) event.getX(i);
                    y[i] = (int) event.getY(i);
                    result += "\n(" + id[i] + ": " + x[i] + ", " + y[i] + ")";
                }
                break;

            default:
                break;
        }

        textView.setText(result);

        return super.onTouchEvent(event);
    }
}



Run the app and touch the panel.


반응형
저작자표시 비영리 변경금지

'Android' 카테고리의 다른 글

AdMob Mobile Ads SDK (Android) 애드몹 광고 SDK (안드로이드)  (0) 2022.01.31
Remove Action Bar And Status Bar(Fullscreen) 액션바, 상태 표시줄 제거하기(전체화면)  (0) 2022.01.31
Handling single touch event in Android 안드로이드 싱글 터치 이벤트  (0) 2019.12.08
Create a simple Paint app for Android 간단한 안드로이드 그림판 만들기  (0) 2019.12.08
Multiple buttons with one listener 한 개의 리스너로 버튼 여러개 처리하기  (0) 2019.12.04
Posted by J-sean
:

티스토리툴바
