중력이 적용된 캐릭터를 만들어 보자.



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
import pygame

pygame.init()
pygame.display.set_caption("Super fun game development")
screen = pygame.display.set_mode((640480), vsync=1)
clock = pygame.time.Clock()
FPS = 60
running = True

# 플레이어 클래스 with Gravity
class Player(pygame.sprite.Sprite):
    def __init__(self, position):
        pygame.sprite.Sprite.__init__(self)

        self.direction = -1
        self.speed = 4
        self.image = pygame.image.load("player.png").convert()
        self.image.set_colorkey(self.image.get_at((00)))
        self.size = (self.image.get_width()*1.5self.image.get_height()*1.5)
        self.image = pygame.transform.scale(self.image, self.size)
        self.rect = self.image.get_rect(center=position)
        self.isGround = False
        self.jumpForce = 0.0
        self.gravity = 5.0

    def flip_image(self):
        self.image = pygame.transform.flip(self.image, TrueFalse)

    def update(self):
        global running

        for event in pygame.event.get():
            if event.type == pygame.QUIT:
                running = False
            elif event.type == pygame.KEYDOWN and event.key == pygame.K_ESCAPE:
                running = False

        keys = pygame.key.get_pressed()
        if keys[pygame.K_LEFT]:
            if self.direction > 0:
                self.flip_image()
                self.direction = -1
            self.rect.move_ip(-self.speed, 0)
        if keys[pygame.K_RIGHT]:
            if self.direction < 0:
                self.flip_image()
                self.direction = 1
            self.rect.move_ip(self.speed, 0)
        if keys[pygame.K_UP]:
            if self.isGround:
                self.jumpForce = -17

        if not self.isGround:
            self.rect.centery += self.gravity + self.jumpForce
            self.gravity += 0.3
        else:
            self.rect.centery += self.jumpForce
            self.gravity = 5.0

        if self.jumpForce < 0:
            self.jumpForce += 0.10
        elif self.jumpForce >= 0:
            self.jumpForce = 0.0

# 버블 클래스
class Bubble(pygame.sprite.Sprite):
    def __init__(self, position):
        pygame.sprite.Sprite.__init__(self)

        self.image = pygame.image.load("bubble.png").convert()
        self.image.set_colorkey(self.image.get_at((00)))
        self.size = (self.image.get_width()*6self.image.get_height()*6)
        self.image = pygame.transform.scale(self.image, self.size)
        self.rect = self.image.get_rect(center=position)
        self.collided = False

    def update(self):
        if self.collided == True:
            self.rect.top -= 1

# 그라운드 클래스
class Ground(pygame.sprite.Sprite):
    def __init__(self, position):
        pygame.sprite.Sprite.__init__(self)

        self.image = pygame.image.load("ground.png").convert()
        self.rect = self.image.get_rect(bottomleft=position)

    def update(self):
        pass

def main():
    player = Player((screen.get_width()/2, screen.get_height()/2))
    player_sprite = pygame.sprite.Group(player)
    # 플레이어 스프라이트 그룹

    bubbles = [
        Bubble((40, screen.get_height()/2)),
        Bubble((160, screen.get_height()/2)),
        Bubble((480, screen.get_height()/2)),
        Bubble((600, screen.get_height()/2))]
    bubble_sprites = pygame.sprite.Group(bubbles)
    # 버블 스프라이트 그룹

    grounds = [
        Ground((0480)),
        Ground((440480))]
    ground_sprites = pygame.sprite.Group(grounds)

    all_sprites = pygame.sprite.Group()
    all_sprites.add(player_sprite)
    all_sprites.add(bubble_sprites)
    all_sprites.add(ground_sprites)

    while running:

        #player_sprite.update()
        #bubble_sprites.update()
        all_sprites.update()

        collision = pygame.sprite.spritecollide(player, bubble_sprites, False)
        for bubble in collision:
            bubble.collided = True
        # 플레이어와 버블의 충돌을 감지하고 충돌한 버블의 collided 값을 True로 바꾼다.

        collision = pygame.sprite.spritecollide(player, ground_sprites, False)
        if len(collision) != 0:
            player.isGround = True
            player.jumpForce = 0.0
            player.rect.bottom = collision[0].rect.top
        else:
            player.isGround = False

        screen.fill("black")
        #player_sprite.draw(screen)
        #bubble_sprites.draw(screen)
        #ground_sprites.draw(screen)
        all_sprites.draw(screen)

        pygame.display.flip()
        clock.tick(FPS)

    pygame.quit()

if __name__ == '__main__':
  main()




코드를 입력하고 실행한다.



캐릭터에 중력이 적용되어 움직인다.



반응형
Posted by J-sean
:
반응형

파이게임에 간단한 카메라를 만들어 보자.



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
import pygame

pygame.init()
pygame.display.set_caption("Pygame Simple Camera")
screen = pygame.display.set_mode((640480), flags=pygame.RESIZABLE, vsync=1)
clock = pygame.time.Clock()

class Camera():
    def __init__(self):
        self.offset = pygame.math.Vector2(00)
        self.speed = 4

camera = Camera()

def LoadImage(path, scale=None, colorkey=None):
    image = pygame.image.load(path).convert()

    if scale is not None:
        image = pygame.transform.scale(image, (image.get_width()*scale, image.get_height()*scale))

    if colorkey is not None:
        if colorkey == -1:
            colorkey = image.get_at((00))
        image.set_colorkey(colorkey)

    return image

class Sprite(pygame.sprite.Sprite):
    def __init__(self, spriteName, position, frames):
        pygame.sprite.Sprite.__init__(self)

        self.elapsedTime = 0
        self.limitTime = 1000/frames
        # 1초에 한 사이클. 스프라이트가 8프레임이라면 frames에 8을 대입한다.

        self.direction = 1
        self.speed = 4
        self.index = 0
        self.images = [ LoadImage(spriteName, 3-1) ]
        self.image = self.images[self.index]
        self.rect = self.image.get_rect(center=position)

    def flip_image(self):
        self.images = [pygame.transform.flip(image, TrueFalsefor image in self.images]
        self.image = self.images[self.index]

    def update(self):
        if (camera.offset.x != 0 or camera.offset.y != 0):
                self.rect.move_ip(camera.offset.x, camera.offset.y)

        # 1초에 frame번 image 업데이트.
        # self.elapsedTime += clock.get_time()
        # if self.elapsedTime < self.limitTime:
        #     pass
        # else:
        #     self.elapsedTime = 0
        #     self.index += 1
        #     if self.index >= len(self.images):
        #         self.index = 0
        #     self.image = self.images[self.index]

def main():
    player = Sprite("character.bmp", (screen.get_width()/2, screen.get_height()/2), 1)
    shop = Sprite("shop.bmp", (screen.get_width()/2, screen.get_height()/2), 1)
    all_sprites = pygame.sprite.Group()
    all_sprites.add(shop)
    all_sprites.add(player)

    running = True

    while running:
        for event in pygame.event.get():
            if event.type == pygame.QUIT:
                running = False
            elif event.type == pygame.KEYDOWN and event.key == pygame.K_ESCAPE:
                running = False

        keys = pygame.key.get_pressed()
        if keys[pygame.K_LEFT]:
            if player.direction > 0:
                player.flip_image()
                player.direction = -1
            player.rect.move_ip(-player.speed, 0)

        if keys[pygame.K_RIGHT]:
            if player.direction < 0:
                player.flip_image()
                player.direction = 1
            player.rect.move_ip(player.speed, 0)

        if keys[pygame.K_UP]:
            if player.direction < 0:
                player.flip_image()
                player.direction = 1
            player.rect.move_ip(0-player.speed)

        if keys[pygame.K_DOWN]:
            if player.direction < 0:
                player.flip_image()
                player.direction = 1
            player.rect.move_ip(0, player.speed)

        # 카메라 이동
        if keys[pygame.K_a]:
            camera.offset.x = camera.speed
        if keys[pygame.K_d]:
            camera.offset.x = -camera.speed
        if keys[pygame.K_w]:
            camera.offset.y = camera.speed
        if keys[pygame.K_s]:
            camera.offset.y = -camera.speed

        all_sprites.update()

        # 스프라이트 업데이트 후 카메라 오프셋 초기화
        camera.offset.x = camera.offset.y = 0

        screen.fill("black")
        all_sprites.draw(screen)
        pygame.display.flip()

        clock.tick(60)

    pygame.quit()

if __name__ == '__main__':
  main()




코드를 입력하고 실행한다. set_mode()에 vsync 파라미터를 1로 설정하지 않으면 스프라이트가 움직일때 screen tearing 현상이 일어날 수 있다.

pygame.display.set_mode(..., vsync=1)



방향키로 캐릭터를, wasd로 카메라를 움직인다.



※ 참고

Cameras in Pygame



반응형
Posted by J-sean
:
반응형

파이게임과 2D Rigid Body Simulation Library Box2D를 사용해 보자.



다음 명령어로 Box2D를 설치한다.

pip install box2d

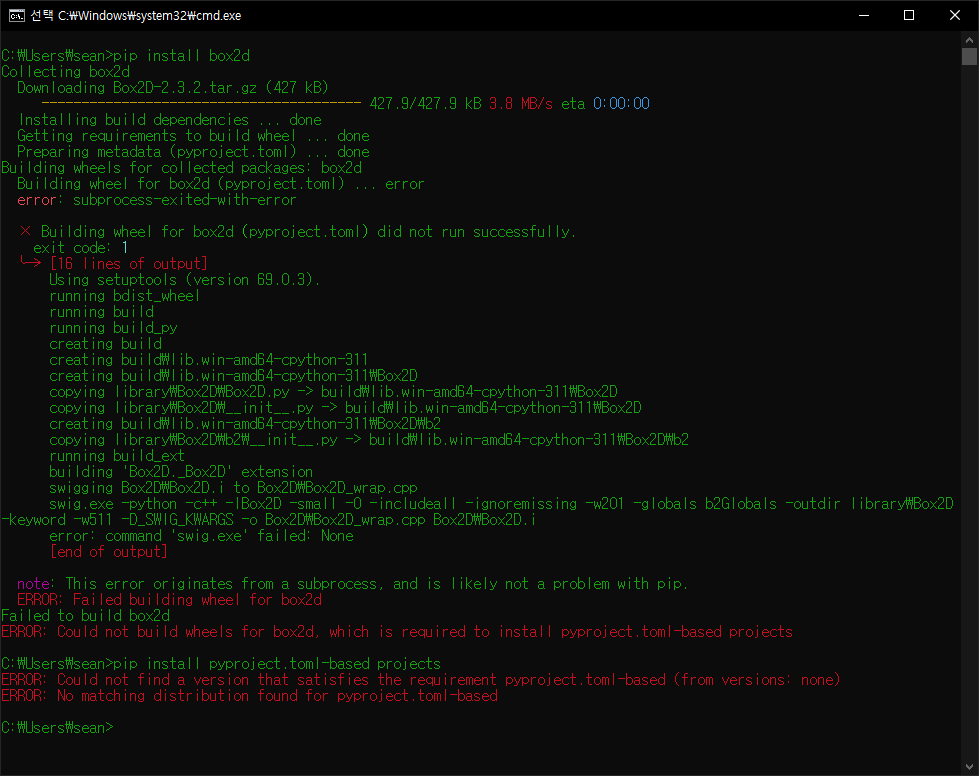

설치중 에러가 발생한다면 SWIG를 설치하고 설치 디렉토리를 시스템 변수 Path에 등록한다.

SWIG

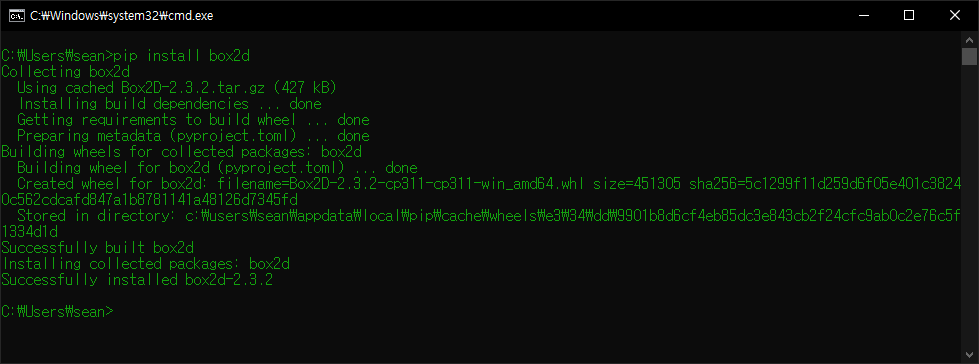

SWIG를 설치하면 에러가 발생하지 않는다.

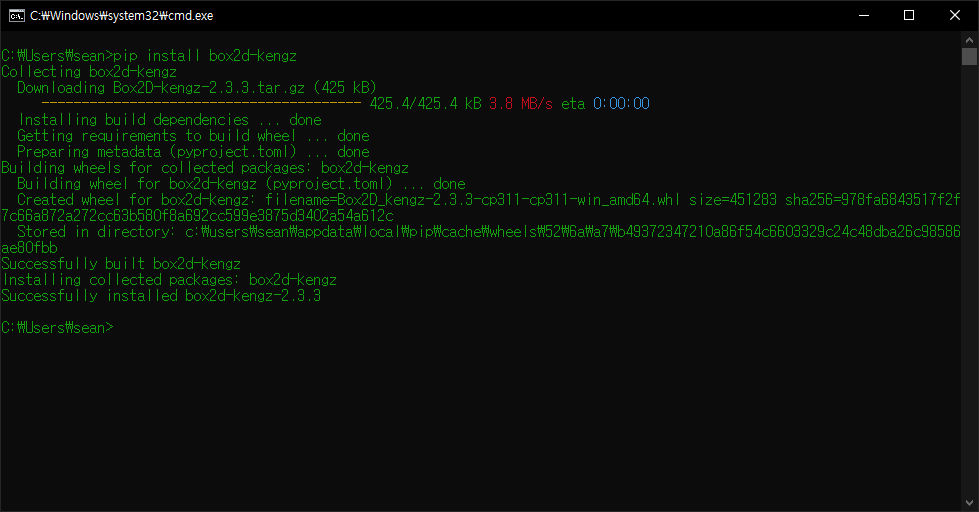

추가로 box2d-kengz를 설치한다.



0.00MB



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
import math
import pygame
from Box2D import *

pygame.init()
pygame.display.set_caption("Physics Test")
screen = pygame.display.set_mode((640480))
running = True
player = pygame.image.load("player.png").convert()

# World 정의
world = b2World(gravity=(09.8), doSleep=True)

# Ground 정의
groundBodyDef = b2BodyDef()
groundBodyDef.position = (0400)
groundBody = world.CreateBody(groundBodyDef)
groundShape = b2PolygonShape()
groundShape.SetAsBox(5000)
groundBody.CreateFixture(shape=groundShape)
#groundBody = world.CreateStaticBody(position=(0, 400), shapes=b2PolygonShape(box=(500, 0)))
# 위 정의와 동일

# Wall 정의
wallBodyDef = b2BodyDef()
wallBodyDef.position = (3000)
wallBody = world.CreateBody(wallBodyDef)
wallShape = b2PolygonShape()
wallShape.SetAsBox(0400)
wallBody.CreateFixture(shape=wallShape)
#wallBody = world.CreateStaticBody(position=(300, 0), shapes=b2PolygonShape(box=(0, 400)))
# 위 정의와 동일

# Player 정의
playerBodyDef = b2BodyDef()
playerBodyDef.type = b2_dynamicBody;
playerBodyDef.position = (00)
playerBodyDef.linearVelocity = (500)
playerBodyDef.angularVelocity = 0.2
playerBody = world.CreateBody(playerBodyDef)
playerShape = b2PolygonShape()
playerShape.SetAsBox(player.get_width()/2, player.get_height()/2)
playerFixtureDef = b2FixtureDef(shape=playerShape)
playerFixtureDef.density = 1
playerFixtureDef.friction = 0.5
playerFixtureDef.restitution = 0.7
playerBody.CreateFixture(playerFixtureDef)
#playerBody = world.CreateDynamicBody(position=(0, 0), linearVelocity=(50, 0),
#                                     angularVelocity=0.2)
#playerFixtureDef = playerBody.CreatePolygonFixture(box=(player.get_width()/2,
#                          player.get_height()/2), density=1, friction=0.5, restitution=0.7)
# 위 정의와 동일

timeStep = 1.0 / 300
vel_iters, pos_iters = 62

while running:
    for event in pygame.event.get():
        if event.type == pygame.QUIT:
            running = False
        elif event.type == pygame.KEYDOWN and event.key == pygame.K_SPACE:
            playerBody.transform = ((00), 0)
            playerBody.linearVelocity = (500)
            playerBody.angularVelocity = 0.2
        elif event.type == pygame.KEYDOWN and event.key == pygame.K_ESCAPE:
            running = False

    # Instruct the world to perform a single step of simulation. It is
    # generally best to keep the time step and iterations fixed.
    world.Step(timeStep, vel_iters, pos_iters)
    # Clear applied body forces. We didn't apply any forces, but you
    # should know about this function.
    world.ClearForces()

    screen.fill("white")
    pygame.draw.rect(screen, "brown", (040060020)) # Ground 그리기
    pygame.draw.rect(screen, "black", (300020400)) # Wall 그리기

    rotated_player = pygame.transform.rotate(player, playerBody.angle * 180/math.pi)
    # Unless rotating by 90 degree increments, the image will be padded larger to hold
    # the new size. If the image has pixel alphas, the padded area will be transparent.
    # Otherwise pygame will pick a color that matches the Surface colorkey or the topleft
    # pixel value.
    screen.blit(rotated_player, (playerBody.position[0- rotated_player.get_width()/2,
                                 playerBody.position[1- rotated_player.get_height()/2))

    pygame.display.flip()

pygame.quit()




코드를 입력하고 실행한다.



GIF 캡쳐 과정에서 화질이 많이 떨어졌지만 강체들의 물리 반응을 확인할 수 있다.



pygame.transform.rotate()

rotate an image
rotate(surface, angle) -> Surface

Unfiltered counterclockwise rotation. The angle argument represents degrees and can be any floating point value. Negative angle amounts will rotate clockwise.
Unless rotating by 90 degree increments, the image will be padded larger to hold the new size. If the image has pixel alphas, the padded area will be transparent. Otherwise pygame will pick a color that matches the Surface colorkey or the topleft pixel value.



배경을 바꾸거나 Colorkey를 설정하면 캐릭터 주변 패딩을 없앨 수 있다.



아래 링크에서 GUI를 구현해 본다.

2024.01.29 - [Python] - [Pygame] Pygame GUI 파이게임 그래픽 유저 인터페이스



※ 참고

PyBox2D

PyBox2D Manual



반응형
Posted by J-sean
:
반응형

충돌 감지 영역을 원으로 지정하고 스프라이트 충돌을 확인해 보자.



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
import pygame

pygame.init()
pygame.display.set_caption("Super fun game development")
screen = pygame.display.set_mode((640480))
clock = pygame.time.Clock()

class Player(pygame.sprite.Sprite):
    def __init__(self, position):
        pygame.sprite.Sprite.__init__(self)

        self.direction = -1
        self.speed = 4
        self.image = pygame.image.load("player.png").convert()
        self.image.set_colorkey(self.image.get_at((00)))
        self.size = (self.image.get_width()*1.5self.image.get_height()*1.5)
        self.image = pygame.transform.scale(self.image, self.size)
        self.rect = self.image.get_rect(center=position)
        # rectangle이 아닌 circle을 이용해 충돌 감지하기 위한 반지름 속성 설정.
        self.radius = 40
        # 충돌 감지 circle 표시
        pygame.draw.circle(self.image, "red"self.image.get_rect().center, self.radius, 2)

    def flip_image(self):
        self.image = pygame.transform.flip(self.image, TrueFalse)

    def update(self):
        pass
# 플레이어 클래스

class Bubble(pygame.sprite.Sprite):
    def __init__(self, position):
        pygame.sprite.Sprite.__init__(self)

        self.image = pygame.image.load("bubble.png").convert()
        self.image.set_colorkey(self.image.get_at((00)))
        self.size = (self.image.get_width()*6self.image.get_height()*6)
        self.image = pygame.transform.scale(self.image, self.size)
        self.rect = self.image.get_rect(center=position)
        self.collided = False
        # rectangle이 아닌 circle을 이용해 충돌 감지하기 위한 반지름 속성 설정.
        self.radius = 40
        # 충돌 감지 circle 표시
        pygame.draw.circle(self.image, "red"self.image.get_rect().center, self.radius, 2)

    def update(self):
        if self.collided == True:
            self.rect.top -= 1
# 버블 클래스
# 충돌(self.collided)을 감지하면 위치(self.rect.top)가 변한다.

def main():
    player = Player((screen.get_width()/2, screen.get_height()/2))
    player_sprite = pygame.sprite.Group(player)
    # 플레이어 스프라이트 그룹

    bubbles = [
        Bubble((40, screen.get_height()/2)),
        Bubble((160, screen.get_height()/2)),
        Bubble((480, screen.get_height()/2)),
        Bubble((600, screen.get_height()/2))]
    bubble_sprites = pygame.sprite.Group(bubbles)
    # 버블 스프라이트 그룹

    running = True

    while running:
        for event in pygame.event.get():
            if event.type == pygame.QUIT:
                running = False
            elif event.type == pygame.KEYDOWN and event.key == pygame.K_ESCAPE:
                running = False

        keys = pygame.key.get_pressed()
        if keys[pygame.K_LEFT]:
            if player.direction > 0:
                player.flip_image()
                player.direction = -1
            player.rect.move_ip(-player.speed, 0)
        if keys[pygame.K_RIGHT]:
            if player.direction < 0:
                player.flip_image()
                player.direction = 1
            player.rect.move_ip(player.speed, 0)

        # spritecollide()의 마지막 인수 collided에 collide_circle()를 대입한다.
        collision = pygame.sprite.spritecollide(player, bubble_sprites, False, pygame.sprite.collide_circle)
        for bubble in collision:
            bubble.collided = True
        # 플레이어와 버블의 충돌을 감지하고 충돌한 버블의 collided 값을 True로 바꾼다.

        player_sprite.update()
        bubble_sprites.update()

        screen.fill("black")

        player_sprite.draw(screen)
        bubble_sprites.draw(screen)

        pygame.display.flip()
        clock.tick(60)

    pygame.quit()

if __name__ == '__main__':
  main()






공룡과 버블의 충돌 감지 영역이 빨간 원으로 표시된다.



좀 더 확실한 확인을 위해 공룡과 버블의 충돌 감지 circle의 radius를 20으로 바꾸고 다시 실행해 보자.



스프라이트는 충돌 했지만 원은 충돌하지 않았기 때문에 충돌로 판정되지 않는다.





반응형
Posted by J-sean
:
반응형

사방이 벽으로 둘러쌓인 공간에서 이리저리 움직이는 공을 만들어 보자.



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
import pygame

pygame.init()
pygame.display.set_caption("Super fun game development")
screen = pygame.display.set_mode((640480))
clock = pygame.time.Clock()

position = pygame.math.Vector2(screen.get_width()/2, screen.get_height()/2)
velocity = pygame.math.Vector2(11).normalize() * 5

running = True

while running:
    for event in pygame.event.get():
        if event.type == pygame.QUIT:
            running = False
        elif event.type == pygame.KEYDOWN and event.key == pygame.K_ESCAPE:
            running = False

    screen.fill("black")

    if position.y > screen.get_height():
        velocity.reflect_ip(pygame.math.Vector2(01))
        # 천장이나 바닥에 부딪히면 (0, 1)의 법선 백터를 갖는 평면에 반사.
    elif position.y < 0:
        velocity.reflect_ip(pygame.math.Vector2(01))
    elif position.x > screen.get_width():
        velocity.reflect_ip(pygame.math.Vector2(10))
        # 오른쪽이나 왼쪽에 부딪히면 (1, 0)의 법선 백터를 갖는 평면에 반사.
    elif position.x < 0:
        velocity.reflect_ip(pygame.math.Vector2(10))

    position = position + velocity
    pygame.draw.circle(screen, "red", position, 20)
    pygame.display.flip()

    clock.tick(60)

pygame.quit()








반응형
Posted by J-sean
:
반응형

OpenGL 화면에 Pygame 이미지(스프라이트)를 렌더링 해 보자.



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
import pygame
from pygame.locals import *

from OpenGL.GL import *
from OpenGL.GLU import *

verticies = ((1-1-1), (11-1), (-11-1), (-1-1-1),
             (1-11), (111), (-1-11), (-111))
edges = ((0,1), (0,3), (0,4), (2,1), (2,3), (2,7), (6,3), (6,4),
         (6,7), (5,1), (5,4), (5,7))

def drawCube():
    glBegin(GL_LINES)
    for edge in edges:
        for vertex in edge:
            glVertex3fv(verticies[vertex])
    glEnd()

def drawImage(x, y):
    image = pygame.image.load("player.png").convert()
    image.set_colorkey(image.get_at((00)))
    image = pygame.transform.scale(image, (image.get_width()*1.5,
                                           image.get_height()*1.5))
    imageData = pygame.image.tostring(image, "RGBA"True)
    glWindowPos2d(x-image.get_width()/2, y-image.get_height()/2)
    glDrawPixels(image.get_width(), image.get_height(), GL_RGBA,
                 GL_UNSIGNED_BYTE, imageData)

pygame.init()
clock = pygame.time.Clock()
display = (640480)
pygame.display.set_mode(display, DOUBLEBUF | OPENGL)

glEnable(GL_BLEND)
glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA)

gluPerspective(45, (display[0]/display[1]), 0.150.0)
glTranslatef(0.00.0-5)

run = True
while run:
    for event in pygame.event.get():
        if event.type == pygame.QUIT:
            run = False

    glRotatef(1311)
    glClear(GL_COLOR_BUFFER_BIT|GL_DEPTH_BUFFER_BIT)
    drawCube()
    drawImage(display[0]/2, display[1]/2)

    pygame.display.flip()
    clock.tick(60)

pygame.quit()
exit()








반응형
Posted by J-sean
:
반응형

OpenGL 화면에 Pygame 폰트를 렌더링 해 보자.



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
import pygame
from pygame.locals import *

from OpenGL.GL import *
from OpenGL.GLU import *

verticies = ((1-1-1), (11-1), (-11-1), (-1-1-1),
             (1-11), (111), (-1-11), (-111))
edges = ((0,1), (0,3), (0,4), (2,1), (2,3), (2,7), (6,3), (6,4),
         (6,7), (5,1), (5,4), (5,7))

def drawCube():
    glBegin(GL_LINES)
    for edge in edges:
        for vertex in edge:
            glVertex3fv(verticies[vertex])
    glEnd()

def drawText(x, y, text):
    font = pygame.font.SysFont('arial'64)
    textSurface = font.render(text, True, (125125125255), (2552550255))
    textData = pygame.image.tostring(textSurface, "RGBA"True)
    glWindowPos2d(x-textSurface.get_width()/2, y-textSurface.get_height()/2)
    glDrawPixels(textSurface.get_width(), textSurface.get_height(), GL_RGBA,
                 GL_UNSIGNED_BYTE, textData)

pygame.init()
clock = pygame.time.Clock()
display = (640480)
pygame.display.set_mode(display, DOUBLEBUF | OPENGL)

gluPerspective(45, (display[0]/display[1]), 0.150.0)
glTranslatef(0.00.0-5)

run = True
while run:
    for event in pygame.event.get():
        if event.type == pygame.QUIT:
            run = False

    glRotatef(1311)
    glClear(GL_COLOR_BUFFER_BIT|GL_DEPTH_BUFFER_BIT)
    drawCube()
    drawText(display[0]/2, display[1]/2"Cube")

    pygame.display.flip()
    clock.tick(60)

pygame.quit()
exit()








이번엔 폰트의 배경이 표시되지 않도록 해 보자.



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
import pygame
from pygame.locals import *

from OpenGL.GL import *
from OpenGL.GLU import *

verticies = ((1-1-1), (11-1), (-11-1), (-1-1-1),
             (1-11), (111), (-1-11), (-111))
edges = ((0,1), (0,3), (0,4), (2,1), (2,3), (2,7), (6,3), (6,4),
         (6,7), (5,1), (5,4), (5,7))

def drawCube():
    glBegin(GL_LINES)
    for edge in edges:
        for vertex in edge:
            glVertex3fv(verticies[vertex])
    glEnd()

def drawText(x, y, text):
    font = pygame.font.SysFont('arial'64)
    textSurface = font.render(text, True, (125125125255)).convert_alpha()
    textData = pygame.image.tostring(textSurface, "RGBA"True)
    glWindowPos2d(x-textSurface.get_width()/2, y-textSurface.get_height()/2)
    glDrawPixels(textSurface.get_width(), textSurface.get_height(), GL_RGBA,
                 GL_UNSIGNED_BYTE, textData)

pygame.init()
clock = pygame.time.Clock()
display = (640480)
pygame.display.set_mode(display, DOUBLEBUF | OPENGL)

glEnable(GL_BLEND)
glBlendFunc(GL_SRC_ALPHA, GL_ONE_MINUS_SRC_ALPHA)

gluPerspective(45, (display[0]/display[1]), 0.150.0)
glTranslatef(0.00.0-5)

run = True
while run:
    for event in pygame.event.get():
        if event.type == pygame.QUIT:
            run = False

    glRotatef(1311)
    glClear(GL_COLOR_BUFFER_BIT|GL_DEPTH_BUFFER_BIT)
    drawCube()
    drawText(display[0]/2, display[1]/2"Cube")

    pygame.display.flip()
    clock.tick(60)

pygame.quit()
exit()








반응형
Posted by J-sean
:

[Pygame] PyOpenGL 파이게임

Python 2023. 9. 11. 23:09 |
반응형

파이게임과 PyOpenGL을 연동해 보자.



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
import pygame
from pygame.locals import *

from OpenGL.GL import *
from OpenGL.GLU import *

verticies = (
    (1-1-1), (11-1),
    (-11-1), (-1-1-1),
    (1-11), (111),
    (-1-11), (-111) )

edges = (
    (0,1), (0,3), (0,4),
    (2,1), (2,3), (2,7),
    (6,3), (6,4), (6,7),
    (5,1), (5,4), (5,7) )

def Cube():
    glBegin(GL_LINES)
    for edge in edges:
        for vertex in edge:
            glVertex3fv(verticies[vertex])
    glEnd()

def main():
    pygame.init()
    display = (640,480)
    pygame.display.set_mode(display, DOUBLEBUF|OPENGL)
    clock = pygame.time.Clock()

    gluPerspective(45, (display[0]/display[1]), 0.150.0)

    glTranslatef(0.00.0-5)

    while True:
        for event in pygame.event.get():
            if event.type == pygame.QUIT:
                pygame.quit()
                quit()

        glRotatef(1312)
        glClear(GL_COLOR_BUFFER_BIT|GL_DEPTH_BUFFER_BIT)
        Cube()

        pygame.display.flip()
        clock.tick(30)

if __name__ == '__main__':
   main()








※ 참고

PyOpenGL Tutorial1

PyOpenGL Tutorial2

OpenGL 강좌1

OpenGL 강좌2



반응형
Posted by J-sean
:
