[Pygame] Sorting Algorithms in Python 파이썬 정렬 알고리즘 2

기본 정렬 알고리즘 세 가지(퀵, 머지, 힙)를 파이게임으로 시각화 해 보자.



import os
import random
os.environ['PYGAME_HIDE_SUPPORT_PROMPT'] = '1'
import pygame
from math import ceil, floor

pygame.init()
pygame.display.set_caption("Sorting Visualization")
screensize = (640, 580)
screen = pygame.display.set_mode(screensize)
clock = pygame.time.Clock()
framerate = 10
running = True

font = pygame.font.Font(None, 30)
text = font.render("Sorting Visualization\n\n" +
                   "*q: Quick Sorting [ O(nlogn) ]\n" +
                   "*m: Merge Sorting [ O(nlogn) ]\n" +
                   "*h: Heap Sorting [ O(nlogn) ]\n" +
                   "\n*g: Random Data Generation", True, "gray")
text_pos = text.get_rect()
text_pos.center = (screen.get_width()/2, text_pos.height/2)

data_size = 64
data = list()
data_color = list()

def DataGenerator():
    global data
    global data_color

    data = [random.randint(10, 400) for i in range(data_size)]
    data_color = [(random.randint(0, 255), random.randint(0, 255), random.randint(0, 255))
                  for i in range(data_size)]

DataGenerator()

def Visualize():
    screen.fill("black")
    screen.blit(text, text_pos)
    for i in range(data_size):
        pygame.draw.rect(screen, data_color[i], (i*10, screensize[1]-data[i], 10, data[i]))
    pygame.display.flip()
    clock.tick(framerate)

def Finalize():
    screen.fill("white")
    pygame.display.flip()
    clock.tick(framerate)

def EventHandler():
    for event in pygame.event.get():
        if event.type == pygame.KEYDOWN and event.key == pygame.K_ESCAPE:
            return -1
        elif event.type == pygame.QUIT:
            exit()

def QuickSort(start, end):
    if start >= end:
        return
    pivot = start
    left = start + 1
    right = end

    while left <= right:
        if EventHandler() == -1:
            return

        while left <= end and data[left] <= data[pivot]:
            left += 1
        while right > start and data[right] >= data[pivot]:
            right -= 1
        if left > right:
            data[right], data[pivot] = data[pivot], data[right]
            data_color[right], data_color[pivot] = data_color[pivot], data_color[right]
        else:
            data[left], data[right] = data[right], data[left]
            data_color[left], data_color[right] = data_color[right], data_color[left]

        Visualize()

    QuickSort(start, right-1)
    QuickSort(right+1, end)

def MergeSort_1(data_list, color_list):
    if len(data_list) < 2:
        return data_list, color_list

    mid = len(data_list) // 2
    low_data_list, low_color_list = MergeSort_1(data_list[:mid], color_list[:mid])
    high_data_list, high_color_list = MergeSort_1(data_list[mid:], color_list[mid:])

    merged_data_list = list()
    merged_color_list = list()
    l = h = 0
    while l < len(low_data_list) and h < len(high_data_list):
        if low_data_list[l] < high_data_list[h]:
            merged_data_list.append(low_data_list[l])
            merged_color_list.append(low_color_list[l])
            l += 1
        else:
            merged_data_list.append(high_data_list[h])
            merged_color_list.append(high_color_list[h])
            h += 1

    merged_data_list += low_data_list[l:]
    merged_color_list += low_color_list[l:]

    merged_data_list += high_data_list[h:]
    merged_color_list += high_color_list[h:]

    return merged_data_list, merged_color_list

def MergeSort_2():
    def sort(low, high):
        if EventHandler() == -1:
            return

        if high - low < 2:
            return

        mid = (low + high) // 2
        sort(low, mid)
        sort(mid, high)
        merge(low, mid, high)

    def merge(low, mid, high):
        data_temp = list()
        color_temp = list()
        l, h = low, mid

        while l < mid and h < high:
            if data[l] < data[h]:
                data_temp.append(data[l])
                color_temp.append(data_color[l])
                l += 1
            else:
                data_temp.append(data[h])
                color_temp.append(data_color[h])
                h += 1

        while l < mid:
            data_temp.append(data[l])
            color_temp.append(data_color[l])
            l += 1

        while h < high:
            data_temp.append(data[h])
            color_temp.append(data_color[h])
            h += 1

        for i in range(low, high):
            data[i] = data_temp[i - low]
            data_color[i] = color_temp[i - low]

            Visualize()

    sort(0, data_size)

def HeapSort():
    for i in range(len(data)):
        par = ceil(i/2) - 1
        while par >= 0 and data[par] < data[i]:
            data[par], data[i] = data[i], data[par]
            data_color[par], data_color[i] = data_color[i], data_color[par]
            i = par
            par = floor((i-1)/2)

    for i in range(len(data)-1, 0, -1):
        data[0], data[i] = data[i], data[0]
        data_color[0], data_color[i] = data_color[i], data_color[0]

        cur = 0
        lch = 1
        rch = 2

        while True:
            if EventHandler() == -1:
                return

            if rch < i and data[lch] < data[rch]:
                lch = rch

            if lch < i and data[lch] > data[cur]:
                data[lch], data[cur] = data[cur], data[lch]
                data_color[lch], data_color[cur] = data_color[cur], data_color[lch]

                Visualize()

                cur = lch
                lch = cur * 2 + 1
                rch = cur * 2 + 2
            else:
                lch = i # break와 같은 효과

            if not lch < i:
                break

while running:
    for event in pygame.event.get():
        if event.type == pygame.QUIT:
            running = False
        elif event.type == pygame.KEYDOWN and event.key == pygame.K_ESCAPE:
            running = False
        elif event.type == pygame.KEYDOWN and event.key == pygame.K_q:
            QuickSort(0, data_size - 1)
            Finalize()
        elif event.type == pygame.KEYDOWN and event.key == pygame.K_m:
            MergeSort_2()
            Finalize()
        elif event.type == pygame.KEYDOWN and event.key == pygame.K_n:
            data, data_color = MergeSort_1(data, data_color)
            Finalize()
        elif event.type == pygame.KEYDOWN and event.key == pygame.K_h:
            HeapSort()
            Finalize()
        elif event.type == pygame.KEYDOWN and event.key == pygame.K_g:
            DataGenerator()

   Visualize()

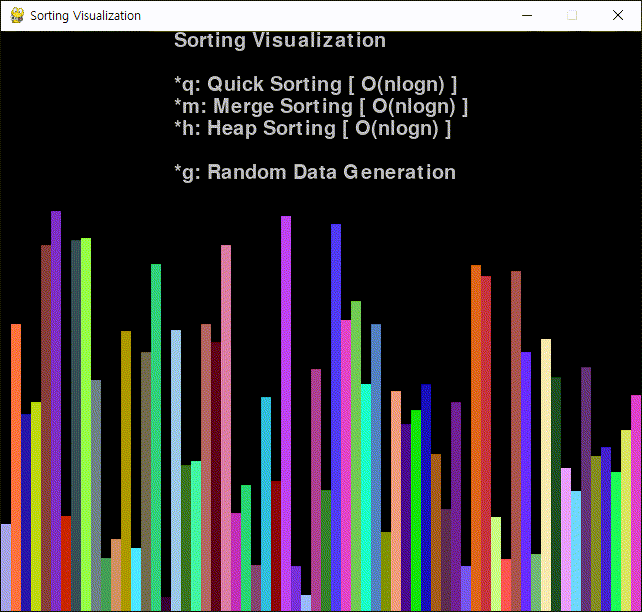

코드를 작성하고 실행한다.
