[Godot] 2D Splash Dynamic Wave 자연스러운 물결 파동 3. 응용



2023.10.18 - [Godot] - [Godot] 2D Splash Dynamic Wave 자연스러운 물결 파동 2. 구현



위 링크를 참고해 만들어진 물에 돌을 떨어뜨려 보자.



Stone씬을 만든다.

Stone(RigidBody2D) - Script(stone.cs)를 추가한다.

Sprite2D - Texture를 추가한다.

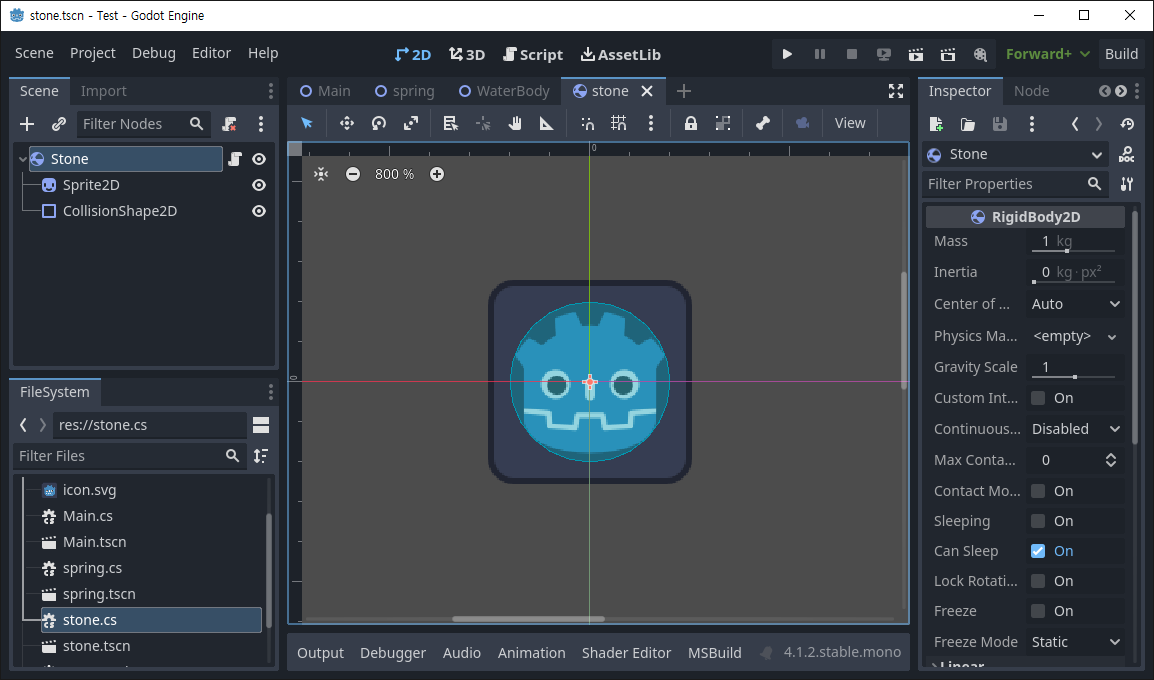

CollisionShape2D - Shape을 추가한다.



using Godot;

public partial class stone : RigidBody2D
{
    public override async void _Process(double delta)
    {
        await ToSignal(GetTree().CreateTimer(2.0), SceneTreeTimer.SignalName.Timeout);
        QueueFree();
    }
}



생성되고 2초 후 삭제되는 스크립트(stone.cs)를 작성한다.

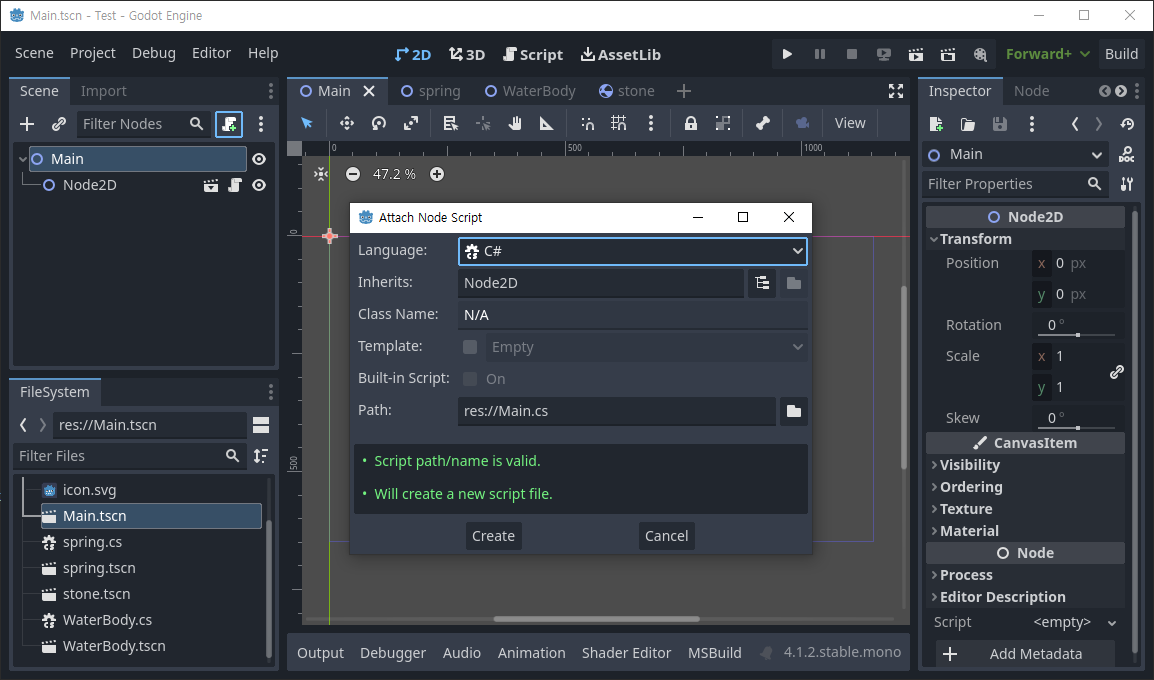

Main씬에 스크립트(Main.cs)를 추가한다.



using Godot;

public partial class Main : Node2D
{
    public PackedScene Scene;

    public override void _Ready()
    {
        Scene = ResourceLoader.Load<PackedScene>("res://stone.tscn");
    }

    public override void _Input(InputEvent @event)
    {
        if (@event is InputEventMouseButton button)
            if (button.Pressed && button.ButtonIndex == MouseButton.Left)
            {
                RigidBody2D stone = Scene.Instantiate<RigidBody2D>();
                stone.Position = GetViewport().GetMousePosition();
                AddChild(stone);
            }
    }
}



왼쪽 마우스 버튼을 클릭하면 돌을 생성하는 스크립트(Main.cs)를 작성한다.

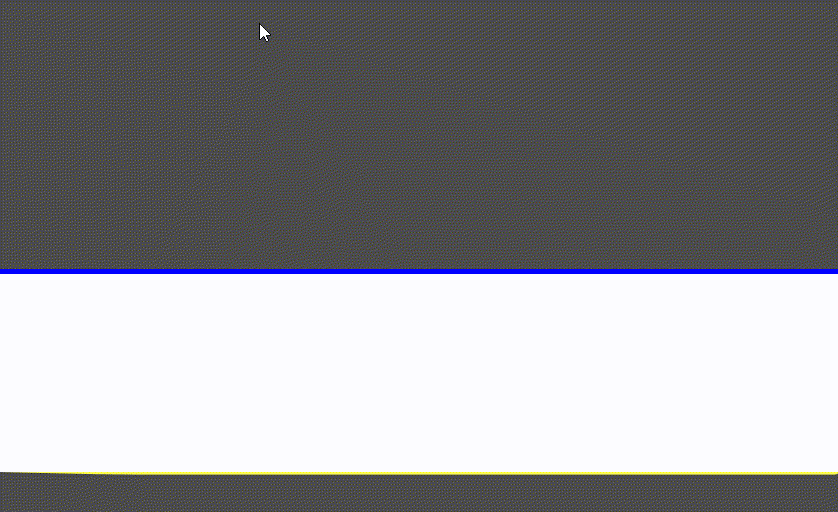

마우스를 클릭하면 돌이 생성되고 아래로 떨어진다.



spring씬에 Area2D와 CollisionShape2D를 추가한다.

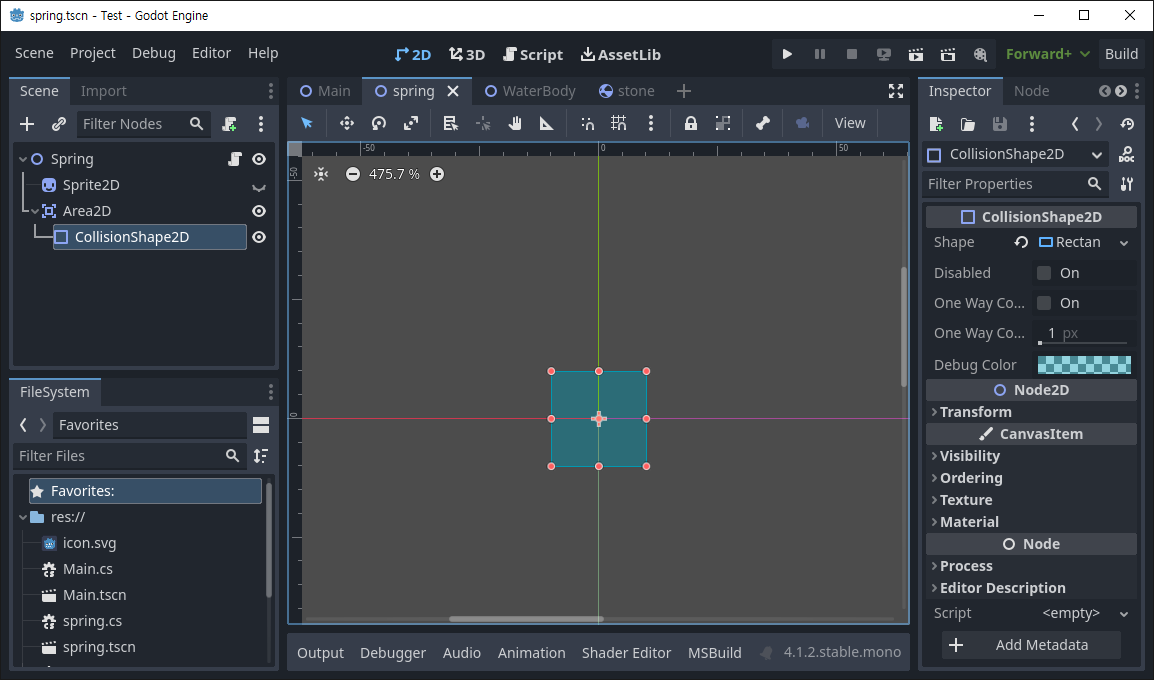

CollisionShape2D - RectangleShape2D를 추가한다.



using Godot;

public partial class spring : Node2D
{
    public float velocity;
    public float force;
    public float height;
    public float target_height;

    public CollisionShape2D collision;

    public void Initialize(int x_position)
    {
        Position = new Vector2(x_position, 100);
        height = Position.Y;
        target_height = Position.Y;
        velocity = 0;

        collision = GetNode<CollisionShape2D>("Area2D/CollisionShape2D");
    }

    public void water_update(float spring_constant, float dampening)
    {
        height = Position.Y;
        float x = height - target_height;
        float resist = -dampening * velocity;
        force = -spring_constant * x + resist;

        velocity += force;
        Position += new Vector2(0, velocity);
    }

    public void set_collision_width(int distance)
    {
        ((RectangleShape2D)collision.Shape).Size = new Vector2(distance,
            collision.Shape.GetRect().Size.Y);
    }
}



spring.cs를 위와 같이 수정한다.



public override void _Ready()
{
    k = 0.015f;
    d = 0.05f;
    spread = 0.0002f;
    passes = 8;
    depth = 1000;
    bottom = (int)GlobalPosition.Y + depth;
    water_polygon = GetNode<Polygon2D>("Polygon2D");

    springs = new List<spring>();
    spring_number = 10;
    distance_between_springs = 100;
    scene = ResourceLoader.Load<PackedScene>("res://spring.tscn");
    for (int i = 0; i < spring_number; i++)
    {
        Node2D s = scene.Instantiate<Node2D>();
        AddChild(s);
        springs.Add(s as spring);

        int x_position = distance_between_springs * i + 100;
        (s as spring).Initialize(x_position);
        (s as spring).set_collision_width(distance_between_springs);
    }

    wave_position = new Curve2D();
}



WaterBody.cs는 set_collision_width() 호출 코드만 추가하면 된다.

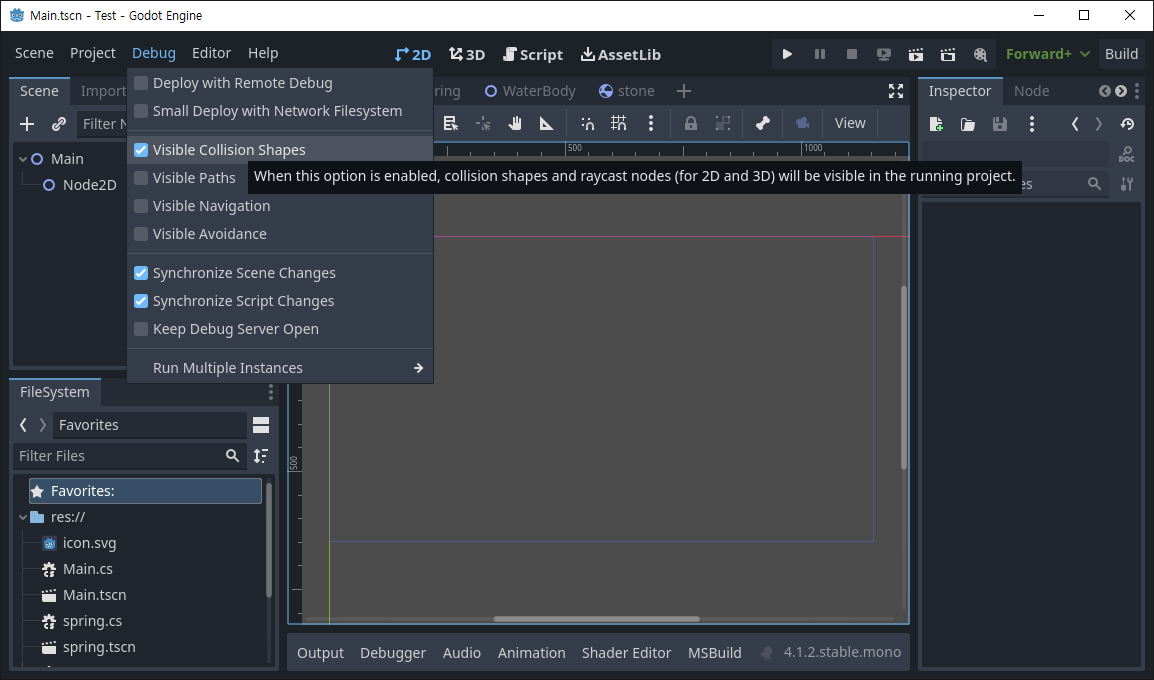

실행 시 Collision Shape이 보이도록 설정한다.

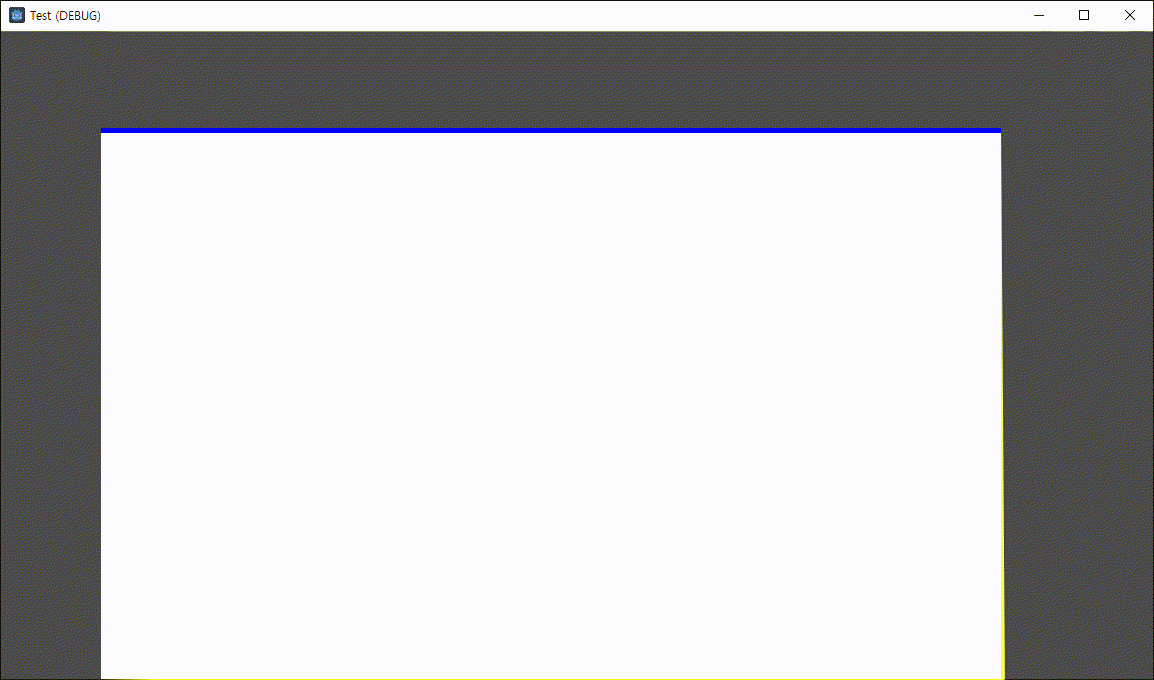

Collision Shape이 생성되고 표시된다.

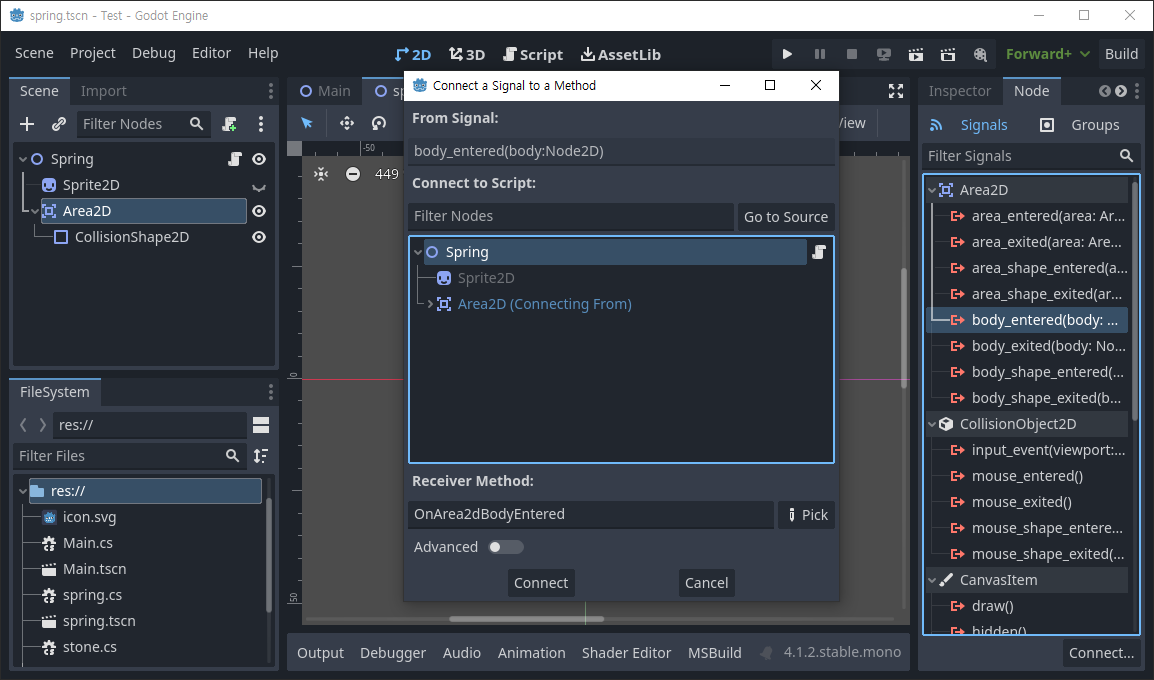

Spring - Area2D - body_entered 시그널을 Spring 스크립트와 연결한다.



using Godot;

public partial class spring : Node2D
{
    public float velocity;
    public float force;
    public float height;
    public float target_height;

    public CollisionShape2D collision;

    public int index;
    public float stone_velocity_factor;
    [Signal]
    public delegate void SplashEventHandler(int index, float velocity);
    // index, stone_velocity_factor, Splash 시그널 추가

    public void Initialize(int x_position, int id)
    {
        Position = new Vector2(x_position, 100);
        height = Position.Y;
        target_height = Position.Y;
        velocity = 0;

        index = id;
        stone_velocity_factor = 0.02f;
        // index, stone_velocity_factor 초기화

        collision = GetNode<CollisionShape2D>("Area2D/CollisionShape2D");
    }

    public void water_update(float spring_constant, float dampening)
    {
        height = Position.Y;
        float x = height - target_height;
        float resist = -dampening * velocity;
        force = -spring_constant * x + resist;

        velocity += force;
        Position += new Vector2(0, velocity);
    }

    public void set_collision_width(int distance)
    {
        ((RectangleShape2D)collision.Shape).Size = new Vector2(distance,
            collision.Shape.GetRect().Size.Y);
    }

    public void OnArea2dBodyEntered(Node2D body)
    {
        float speed = (body as RigidBody2D).LinearVelocity.Y * stone_velocity_factor;
        // We need to disable the spring's collision so that we don't trigger the body enter
        // signal more than once.
        // Must be deferred as we can't change physics properties on a physics callback.
        body.SetDeferred(CollisionShape2D.PropertyName.Disabled, true);
        // Signal
        EmitSignal(SignalName.Splash, index, speed);
    }
}



spring.cs 를 위와 같이 수정한다.





using Godot;
using System.Collections.Generic;

public partial class WaterBody : Node2D
{
    public float k;
    public float d;
    public float spread;
    public int passes;
    public List<spring> springs;
    public int spring_number;
    public int distance_between_springs;
    public int depth;
    public int target_height;
    public int bottom;
    public PackedScene scene;
    public Polygon2D water_polygon;
    public Curve2D wave_position;

    public override void _Ready()
    {
        k = 0.015f;
        d = 0.05f;
        spread = 0.0002f;
        passes = 8;
        depth = 1000;
        bottom = (int)GlobalPosition.Y + depth;
        water_polygon = GetNode<Polygon2D>("Polygon2D");

        springs = new List<spring>();
        spring_number = 10;
        distance_between_springs = 100;
        scene = ResourceLoader.Load<PackedScene>("res://spring.tscn");
        for (int i = 0; i < spring_number; i++)
        {
            Node2D s = scene.Instantiate<Node2D>();
            AddChild(s);
            springs.Add(s as spring);

            int x_position = distance_between_springs * i + 100;
            (s as spring).Initialize(x_position, i);
            // Index 추가
            (s as spring).set_collision_width(distance_between_springs);
            (s as spring).Splash += splash;
            // Signal 추가
        }

        wave_position = new Curve2D();
    }

    public override void _PhysicsProcess(double delta)
    {
        //if (Input.IsActionJustPressed("ui_accept"))
        //    splash(5, 20);
        // 테스트용 splash() 호출 삭제

        foreach (spring item in springs)
        {
            item.water_update(k, d);
        }

        List<float> left_deltas = new List<float>();
        List<float> right_deltas = new List<float>();

        for (int i = 0; i < springs.Count; i++)
        {
            left_deltas.Add(0.0f);
            right_deltas.Add(0.0f);
        }

        for (int p = 0; p < passes; p++)
        {
            for (int i = 0; i < springs.Count; i++)
            {
                if (i > 0)
                {
                    left_deltas[i] = spread * (springs[i].height - springs[i - 1].height);
                    springs[i - 1].velocity += left_deltas[i];
                }
                if (i < springs.Count - 1)
                {
                    right_deltas[i] = spread * (springs[i].height - springs[i + 1].height);
                    springs[i + 1].velocity += right_deltas[i];
                }
            }
        }

        draw_wave();
        draw_waterbody();
    }

    public void splash(int index, float speed)
    {
        if (index >= 0 && index < springs.Count)
        {
            springs[index].velocity += speed;
        }
    }

    public void draw_waterbody()
    {
        List<Vector2> surface_points = new List<Vector2>();
        Vector2[] baked_points = wave_position.GetBakedPoints();
        for (int i = 0; i < baked_points.Length; i++)
        {
            surface_points.Add(baked_points[i]);
        }

        int first_index = 0;
        int last_index = surface_points.Count - 1;

        surface_points.Add(new Vector2(surface_points[last_index].X, bottom));
        surface_points.Add(new Vector2(surface_points[first_index].X, bottom));

        water_polygon.Polygon = surface_points.ToArray();
    }

    public override void _Draw()
    {
        DrawPolyline(wave_position.Tessellate(), Colors.Blue, 5);
    }

    public void draw_wave()
    {
        wave_position.ClearPoints();

        Vector2 control0 = new Vector2(-50, 0);
        Vector2 control1 = new Vector2(50, 0);

        foreach (spring item in springs)
        {
            wave_position.AddPoint(item.Position, control0, control1);
        }

        QueueRedraw();
    }
}



WaterBody.cs를 위와 같이 수정한다.

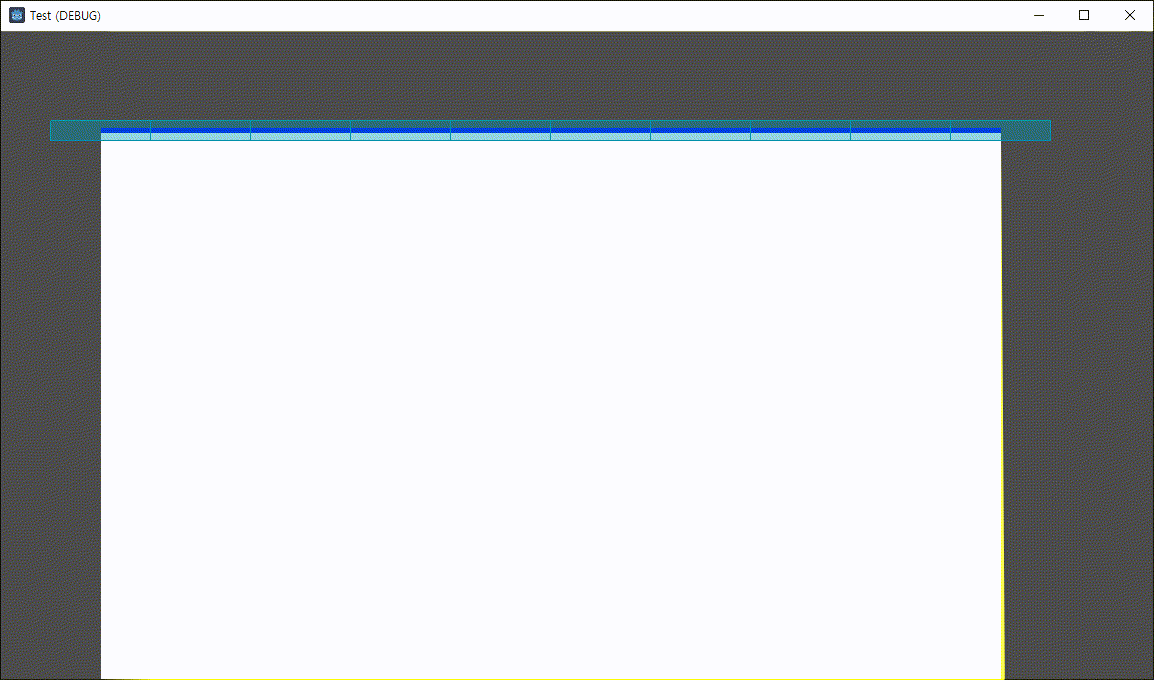

마우스를 클릭하면 돌이 떨어지고 물결이 자연스럽게 파동친다.



public Node2D collided_with = null;

public void OnArea2dBodyEntered(Node2D body)
{
    float speed = (body as RigidBody2D).LinearVelocity.Y * stone_velocity_factor;

    // We need to disable the spring's collision so that we don't trigger the body enter
    // signal more than once.
    // Must be deferred as we can't change physics properties on a physics callback.
    //body.SetDeferred(CollisionShape2D.PropertyName.Disabled, true);
    if (body == collided_with)
        return;
    else
        collided_with = body;

    // Signal
    EmitSignal(SignalName.Splash, index, speed);
}



spring.cs의 OnArea2dBodyEntered()를 위와 같이 바꾸면 SetDeferred()를 사용할 때 보다 훨씬 반응이 빠르고 자연스러운 파동이 만들어진다.





물의 높이는 spring.cs - Initialize() - Position 변수에서 간단히 변경할 수 있다.



Water.zip

10.27MB

전체 프로젝트 파일



※ 참고

Make a Splash With Dynamic 2D Water Effects
