[MediaPipe] Face Landmark Detection 얼굴 특징 감지

MeidaPipe를 사용해 얼굴 특징을 감지해 보자.



import numpy as np
import matplotlib.pyplot as plt
import cv2
from mediapipe import solutions
from mediapipe.framework.formats import landmark_pb2
import mediapipe as mp
from mediapipe.tasks import python
from mediapipe.tasks.python import vision

def draw_landmarks_on_image(rgb_image, detection_result):
  face_landmarks_list = detection_result.face_landmarks
  annotated_image = np.copy(rgb_image)

  # Loop through the detected faces to visualize.
  for idx in range(len(face_landmarks_list)):
    face_landmarks = face_landmarks_list[idx]

    # Draw the face landmarks.
    face_landmarks_proto = landmark_pb2.NormalizedLandmarkList()
    face_landmarks_proto.landmark.extend([
      landmark_pb2.NormalizedLandmark(x=landmark.x, y=landmark.y, z=landmark.z) for landmark in face_landmarks
    ])

    solutions.drawing_utils.draw_landmarks(
        image=annotated_image,
        landmark_list=face_landmarks_proto,
        connections=mp.solutions.face_mesh.FACEMESH_TESSELATION,
        landmark_drawing_spec=None,
        connection_drawing_spec=mp.solutions.drawing_styles
        .get_default_face_mesh_tesselation_style())
    solutions.drawing_utils.draw_landmarks(
        image=annotated_image,
        landmark_list=face_landmarks_proto,
        connections=mp.solutions.face_mesh.FACEMESH_CONTOURS,
        landmark_drawing_spec=None,
        connection_drawing_spec=mp.solutions.drawing_styles
        .get_default_face_mesh_contours_style())
    solutions.drawing_utils.draw_landmarks(
        image=annotated_image,
        landmark_list=face_landmarks_proto,
        connections=mp.solutions.face_mesh.FACEMESH_IRISES,
          landmark_drawing_spec=None,
          connection_drawing_spec=mp.solutions.drawing_styles
          .get_default_face_mesh_iris_connections_style())

  return annotated_image

def plot_face_blendshapes_bar_graph(face_blendshapes):
  # Extract the face blendshapes category names and scores.
  face_blendshapes_names = [face_blendshapes_category.category_name for face_blendshapes_category in face_blendshapes]
  face_blendshapes_scores = [face_blendshapes_category.score for face_blendshapes_category in face_blendshapes]
  # The blendshapes are ordered in decreasing score value.
  face_blendshapes_ranks = range(len(face_blendshapes_names))

  fig, ax = plt.subplots(figsize=(12, 12))
  bar = ax.barh(face_blendshapes_ranks, face_blendshapes_scores, label=[str(x) for x in face_blendshapes_ranks])
  ax.set_yticks(face_blendshapes_ranks, face_blendshapes_names)
  ax.invert_yaxis()

  # Label each bar with values
  for score, patch in zip(face_blendshapes_scores, bar.patches):
    plt.text(patch.get_x() + patch.get_width(), patch.get_y(), f"{score:.4f}", va="top")

  ax.set_xlabel('Score')
  ax.set_title("Face Blendshapes")
  plt.tight_layout()
  plt.show()

# Import the necessary modules.
import mediapipe as mp
from mediapipe.tasks import python
from mediapipe.tasks.python import vision

# Create an FaceLandmarker object.
base_options = python.BaseOptions(model_asset_path='face_landmarker.task')
# https://ai.google.dev/edge/mediapipe/solutions/vision/face_landmarker
options = vision.FaceLandmarkerOptions(base_options=base_options, output_face_blendshapes=True,
                                       output_facial_transformation_matrixes=True, num_faces=1)
detector = vision.FaceLandmarker.create_from_options(options)

# Load the input image.
image = mp.Image.create_from_file("face.jpg")

# Detect face landmarks from the input image.
detection_result = detector.detect(image)

# Process the detection result. In this case, visualize it.
annotated_image = draw_landmarks_on_image(image.numpy_view(), detection_result)
cv2.imshow('sean', cv2.cvtColor(annotated_image, cv2.COLOR_RGB2BGR))
cv2.waitKey(0)



face_landmarker.task

3.58MB



소스를 입력하고 실행한다.



원래 face.jpg 이미지

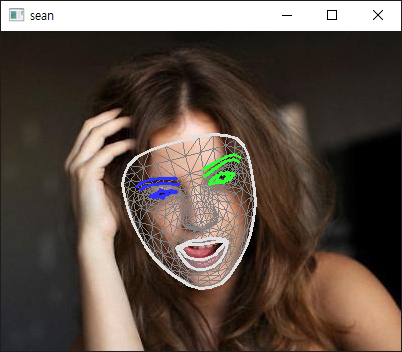

MediaPipe로 분석한 이미지



결과에는 각 특징의 좌표 뿐만 아니라 blendshapes라는 얼굴 표정 데이터도 함께 담겨있다. 확인해 보자.



# The Face Landmarker returns a FaceLandmarkerResult object for each detection run. The result
# object contains a face mesh for each detected face, with coordinates for each face landmark.
# Optionally, the result object can also contain blendshapes, which denote facial expressions,
# and a facial transformation matrix to apply face effects on the detected landmarks.
score = []
for i in range(len(detection_result.face_blendshapes[0])):
    score.append(detection_result.face_blendshapes[0][i].score)
score_sorted = np.sort(score)[::-1] # [::-1] = 내림차순
score_sorted_index = np.argsort(score)[::-1]

for i in range(len(score_sorted)):
    if score_sorted[i] < 0.4: # 40% 이상의 표정만 출력
        break
    print("%d: %.2f, %s" %(i, score_sorted[i],
                           detection_result.face_blendshapes[0][score_sorted_index[i]].category_name))







원래 이미지.



MediaPipe로 분석한 이미지

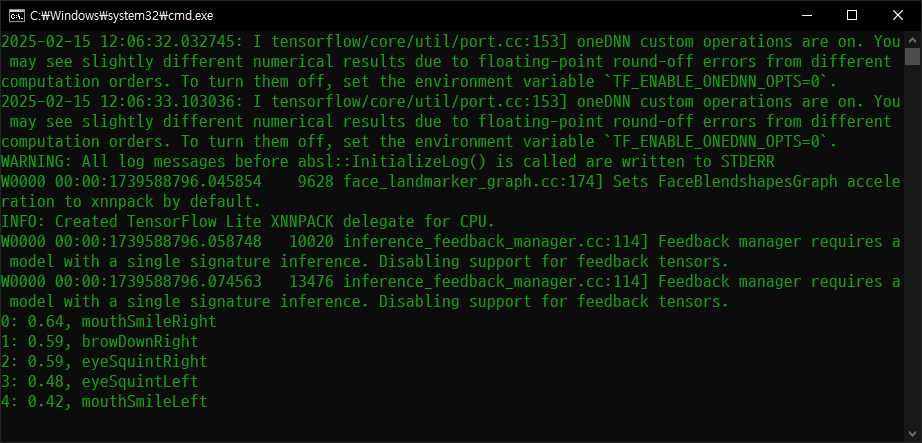

특징을 분석해 얻은 표정 데이터가 확률과 함께 출력된다.
