GDI+ and OpenCV - Bitmap to Mat & Mat to Bitmap Conversion

GDI Plus Bitmap을 OpenCV Mat으로, 다시 OpenCV Mat을 GDI Plus Bitmap으로 변환해 보자.



#include <windows.h>
#include <gdiplus.h>
#include <opencv2/opencv.hpp>

#pragma comment(lib, "gdiplus")

using namespace cv;
using namespace Gdiplus;

LRESULT CALLBACK WndProc(HWND, UINT, WPARAM, LPARAM);
HINSTANCE g_hInst;
LPCSTR lpszClass = "Mat and Bitmap";

Mat originalImage;
Mat bitmapToMat;

int APIENTRY WinMain(HINSTANCE hInstance, HINSTANCE hPrevInstance, LPSTR lpszCmdParam, int nCmdShow)
{
    HWND hWnd;
    MSG Message;
    WNDCLASS WndClass;
    g_hInst = hInstance;

    ULONG_PTR gpToken;
    GdiplusStartupInput gpsi;
    if (GdiplusStartup(&gpToken, &gpsi, NULL) != Ok) {
        MessageBox(NULL, TEXT("GDI+ start-up error."), TEXT("GDI+ Error"), MB_OK);

        return 0;
    }

    WndClass.cbClsExtra = 0;
    WndClass.cbWndExtra = 0;
    WndClass.hbrBackground = (HBRUSH)(COLOR_BTNFACE + 1); //(HBRUSH)GetStockObject(WHITE_BRUSH);
    WndClass.hCursor = LoadCursor(NULL, IDC_ARROW);
    WndClass.hIcon = LoadIcon(NULL, IDI_APPLICATION);
    WndClass.hInstance = hInstance;
    WndClass.lpfnWndProc = (WNDPROC)WndProc;
    WndClass.lpszClassName = lpszClass;
    WndClass.lpszMenuName = NULL;
    WndClass.style = CS_HREDRAW | CS_VREDRAW;
    RegisterClass(&WndClass);

    hWnd = CreateWindow(lpszClass, lpszClass, WS_OVERLAPPEDWINDOW, CW_USEDEFAULT, CW_USEDEFAULT,
        630, 960, NULL, (HMENU)NULL, hInstance, NULL);
    ShowWindow(hWnd, nCmdShow);

    while (GetMessage(&Message, 0, 0, 0)) {
        TranslateMessage(&Message);
        DispatchMessage(&Message);
    }

    GdiplusShutdown(gpToken);

    return (int)Message.wParam;
}

Mat BitmapToMat(Bitmap* bitmap)
{
    PixelFormat pixelFormat = bitmap->GetPixelFormat();
    if (pixelFormat != PixelFormat32bppARGB) // PixelFormat24bppRGB
        return Mat();

    int width = bitmap->GetWidth();
    int height = bitmap->GetHeight();
    Gdiplus::Rect rectLock(0, 0, width, height);
    Gdiplus::BitmapData bitmapData;

    if (bitmap->LockBits(&rectLock, Gdiplus::ImageLockModeRead, pixelFormat, &bitmapData) != Gdiplus::Ok)
        return Mat();

    Mat mat = Mat(height, width, CV_8UC4, // CV_8UC3
        static_cast<unsigned char*>(bitmapData.Scan0), bitmapData.Stride).clone();

    bitmap->UnlockBits(&bitmapData);

    return mat;
}

void OnPaint(HDC hdc)
{
    Graphics G(hdc);

    // Mat to Bitmap
    cvtColor(originalImage, originalImage, COLOR_BGR2BGRA);
    Bitmap bitmap((INT)originalImage.size().width, (INT)originalImage.size().height, (INT)originalImage.step,
        PixelFormat32bppARGB, originalImage.data);
    G.DrawImage(&bitmap, 0, 0, bitmap.GetWidth(), bitmap.GetHeight());

    // Bitmap to Mat
    bitmapToMat = BitmapToMat(&bitmap);

    imshow("BitmapToMat", bitmapToMat);
}

LRESULT CALLBACK WndProc(HWND hWnd, UINT iMessage, WPARAM wParam, LPARAM lParam)
{
    HDC hdc;
    PAINTSTRUCT ps;

    switch (iMessage) {
    case WM_CREATE:
        originalImage = imread("Barbara.jpg");

        return 0;

    case WM_PAINT:
        hdc = BeginPaint(hWnd, &ps);
        OnPaint(hdc);
        EndPaint(hWnd, &ps);

        return 0;

    case WM_DESTROY:
        PostQuitMessage(0);

        return 0;
    }

    return(DefWindowProc(hWnd, iMessage, wParam, lParam));
}



소스를 입력하고 빌드한다.

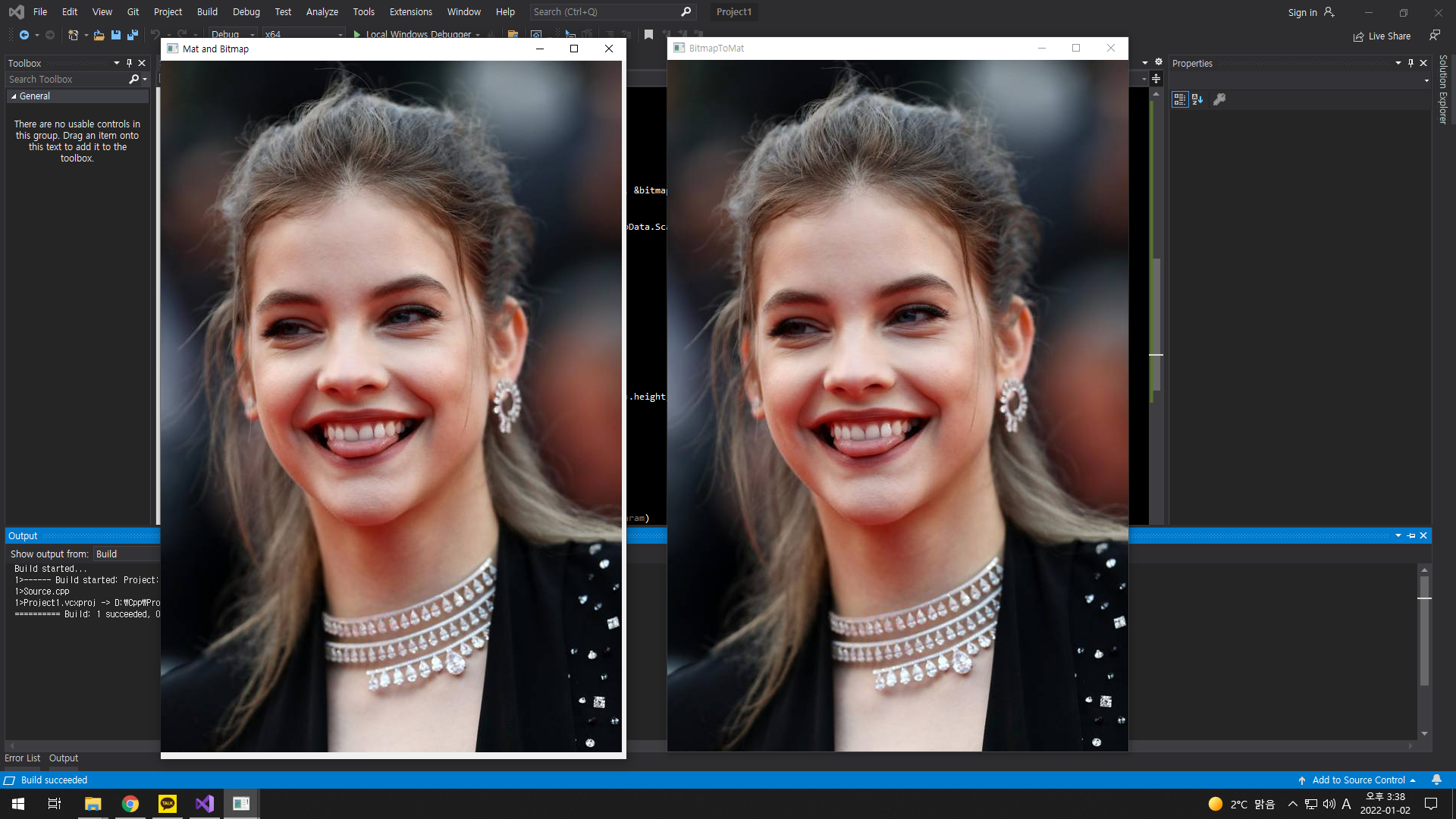

실행하면 Bitmap과 Mat 포맷의 이미지가 출력된다.



Mat to Bitmap 주석 부분이 Mat에서 Bitmap으로 변환의 핵심이다.

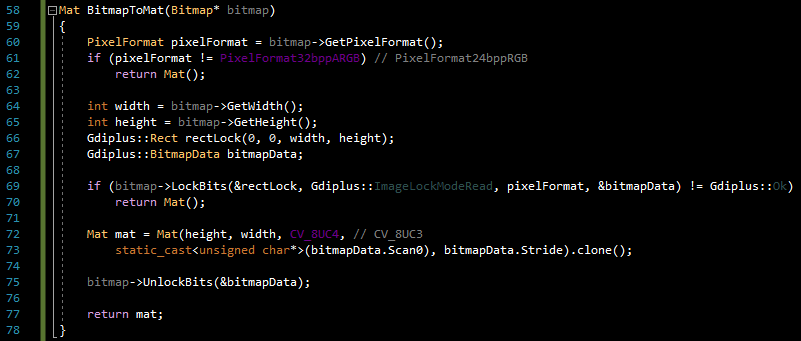

위 함수가 Bitmap에서 Mat으로 변환의 핵심이다.
