[Godot] Path2D PathFollow2D

Godot 2024. 2. 22. 22:10 |
반응형

정해진 길을 따라 움직이는 오브젝트를 만들어 보자.

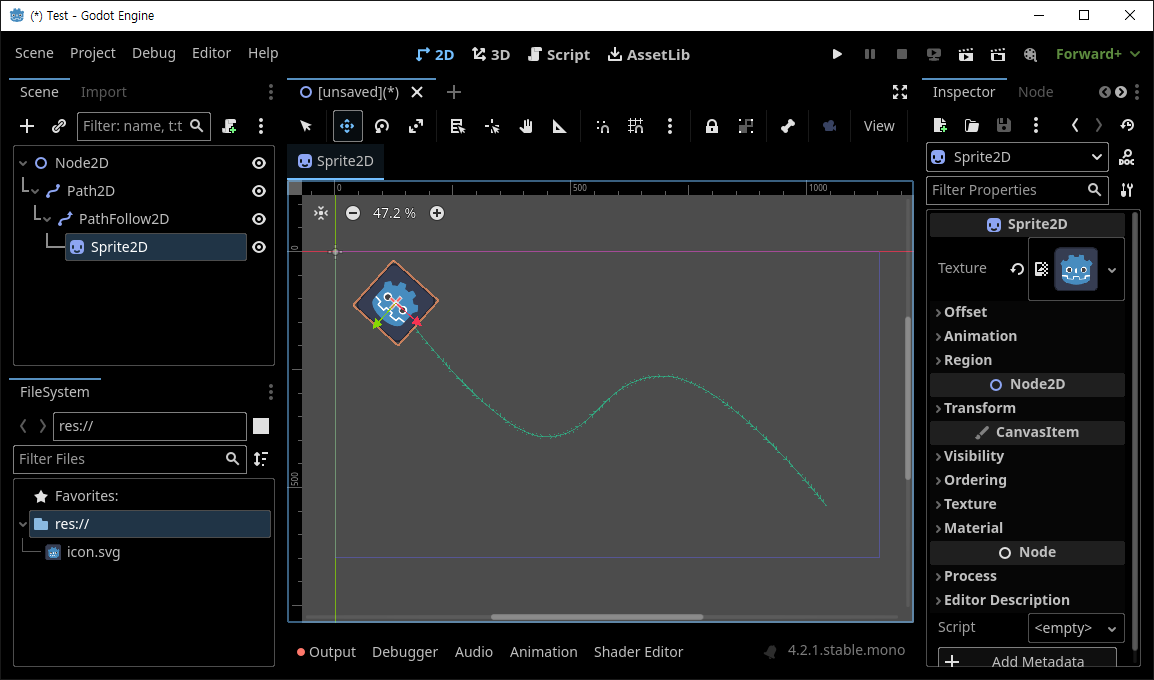

Path2D를 추가하고 툴 버튼을 이용해 path를 그린다.



PathFollow2D, Sprite2D를 추가한다. PathFollow2D는 Path2D의 자식 노드이어야 한다.

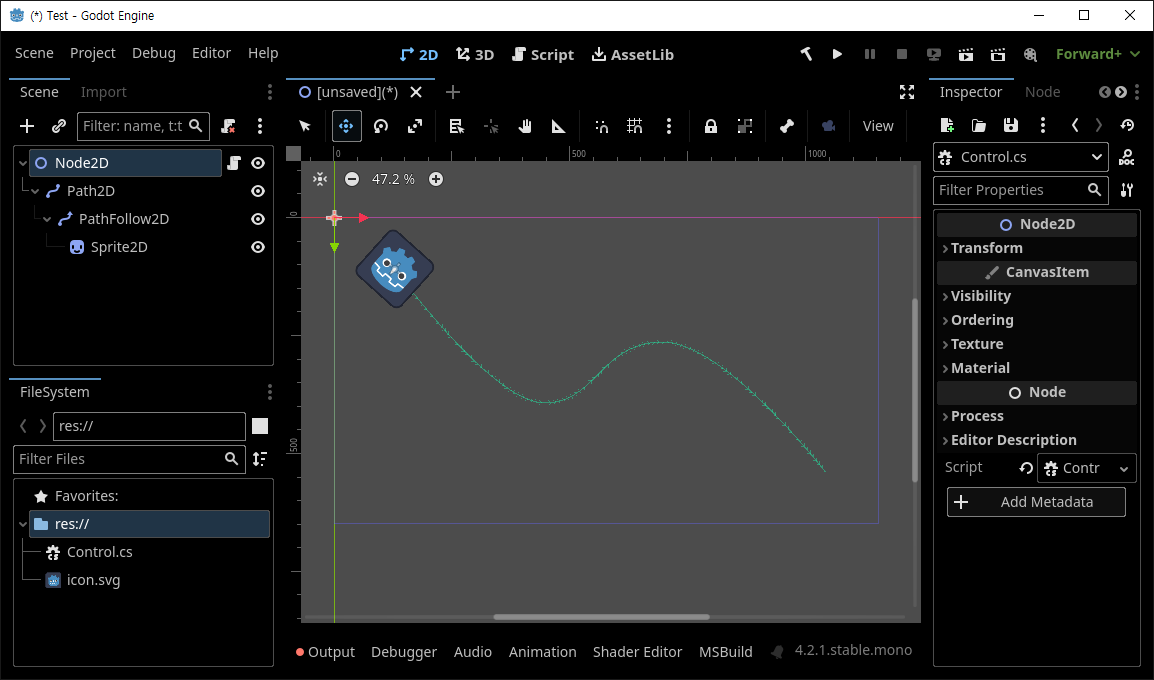

Node2D에 스크립트를 추가한다.



1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
using Godot;

public partial class Control : Node2D
{
    public PathFollow2D follower;

    // Called when the node enters the scene tree for the first time.
    public override void _Ready()
    {
        follower = GetChild<Path2D>(0).GetChild<PathFollow2D>(0);
    }

    // Called every frame. 'delta' is the elapsed time since the previous frame.
    public override void _Process(double delta)
    {
        follower.ProgressRatio += (float)delta;
    }
}




위와 같이 코드를 작성한다.

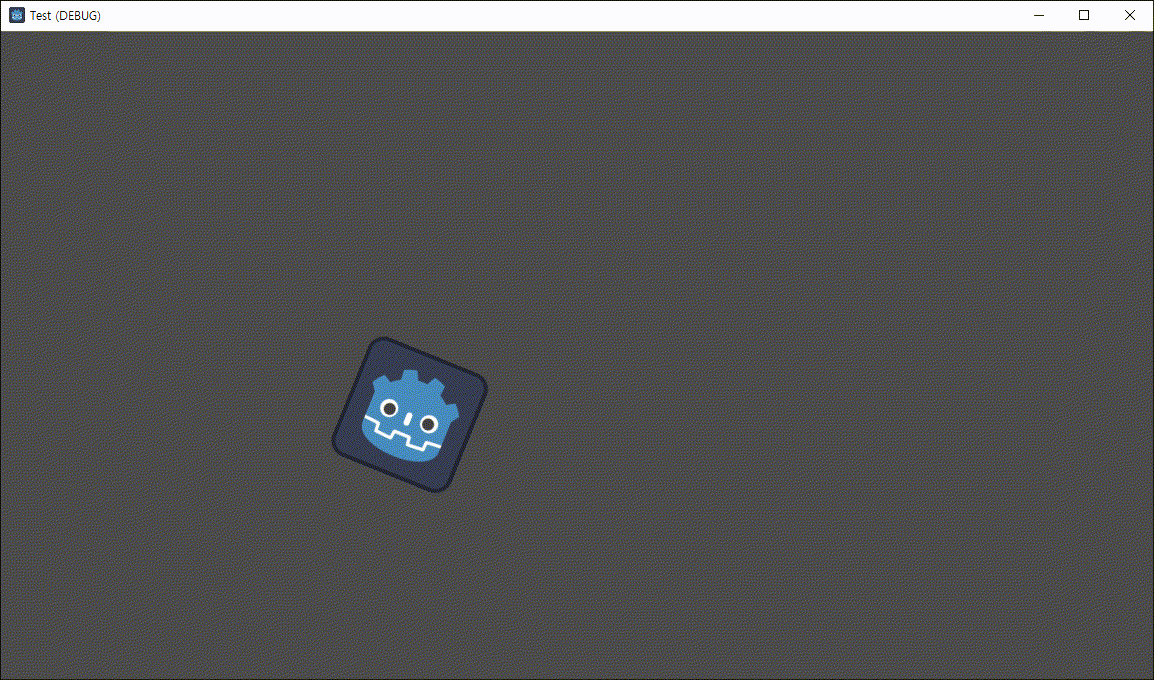

실행하면 스프라이트가 Path를 따라 움직인다.



반응형
Posted by J-sean
:
반응형

유니티 NavMesh Components는 아직 정식버전이 없다. 아래와 같이 설치하자.



Window - Package Manager를 실행한다.



+ 버튼을 클릭하고 Add package from git URL...을 선택한다.



com.unity.ai.navigation을 입력하고 Add 버튼을 클릭한다.



설치가 완료되면 Preview가 표시된다.





Packages에 AI Navigation이 포함되어 있다.

※ 참고

Navigation and Pathfinding



반응형
Posted by J-sean
:
반응형

DOTween의 DOPath() 예제


아래와 같은 스크립트를 만든다.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using DG.Tweening;

public class Tween : MonoBehaviour
{
    public Ease ease;

    public Transform wayPoint1;
    public Transform wayPoint2;
    public Transform wayPoint3;

    private Vector3[] wayPoints;

    // Start is called before the first frame update
    void Start()
    {
        // static DOTween.Init(bool recycleAllByDefault = false, bool useSafeMode = true, LogBehaviour logBehaviour = LogBehaviour.ErrorsOnly)
        // Initializes DOTween.
        DOTween.Init(falsetrue, LogBehaviour.ErrorsOnly);

        wayPoints = new Vector3[3];
        wayPoints.SetValue(wayPoint1.position, 0);
        wayPoints.SetValue(wayPoint2.position, 1);
        wayPoints.SetValue(wayPoint3.position, 2);
        // wayPoints = new[] { wayPoint1.position, wayPoint2.position, wayPoint3.position };

        // DOPath(Vector3[] waypoints, float duration, PathType pathType = Linear, PathMode pathMode = Full3D, int resolution = 10, Color gizmoColor = null)
        // Tweens a Transform's position through the given path waypoints, using the chosen path algorithm.
        transform.DOPath(wayPoints, 6.0f, PathType.CatmullRom).SetLookAt(new Vector3(0.0f, 0.0f, 0.0f)).SetEase(ease).SetLoops(-1, LoopType.Yoyo);
    }

    // Update is called once per frame
    void Update()
    {

    }
}



스크립트 이름은 Tween으로 지정 한다.


Empty Object(WayPoint)와 Cube를 생성하고 Cube에 Tween 스크립트를 추가한다.


Empty Object를 3개 생성하고 WayPointX로 이름을 바꿔서 Cube가 이동할 위치에 배치한다. Cube Inspector 창의 Tween 스크립트에서 Way Point1~3 변수에 WayPoint1~3 오브젝트를 지정한다. Ease 변수도 In Bounce 등 원하는 ease로 변경한다.


플레이 버튼을 클릭 하면 Cube가 지정한 위치들을 거쳐 이동 한다. DOPath()의 경우 Scene창에 이동 경로가 표시 된다.
